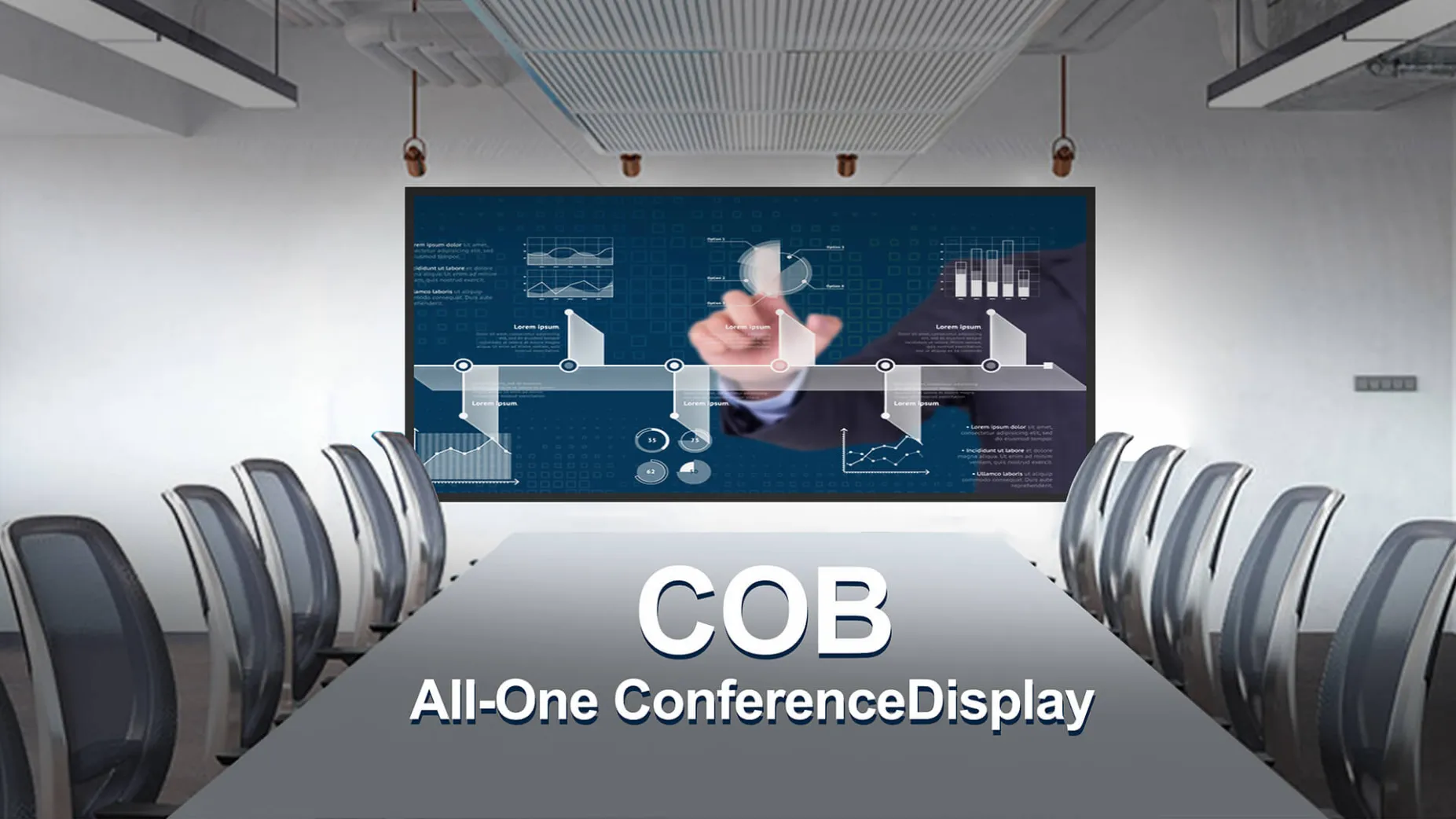

COB Fine LED display

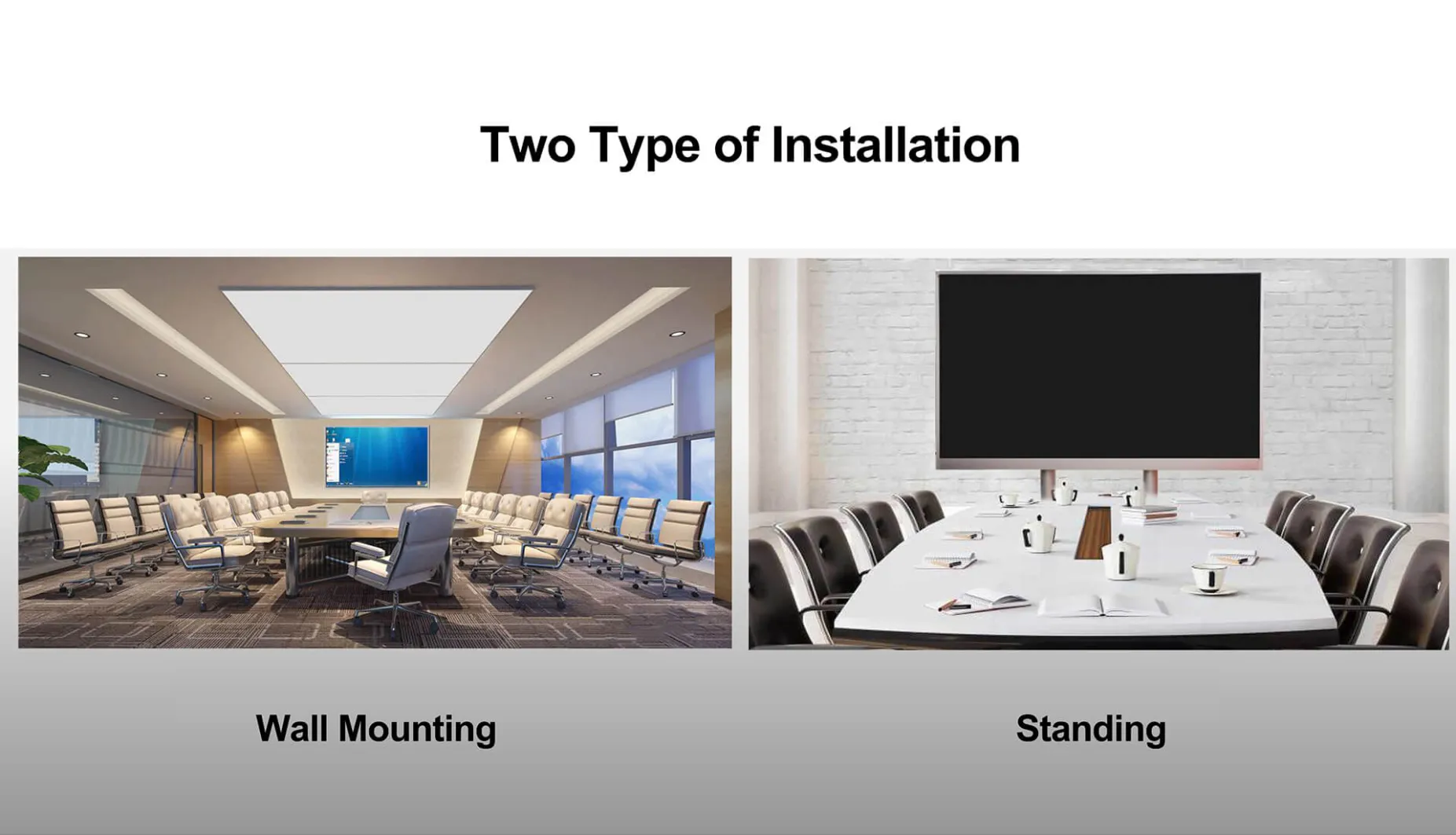

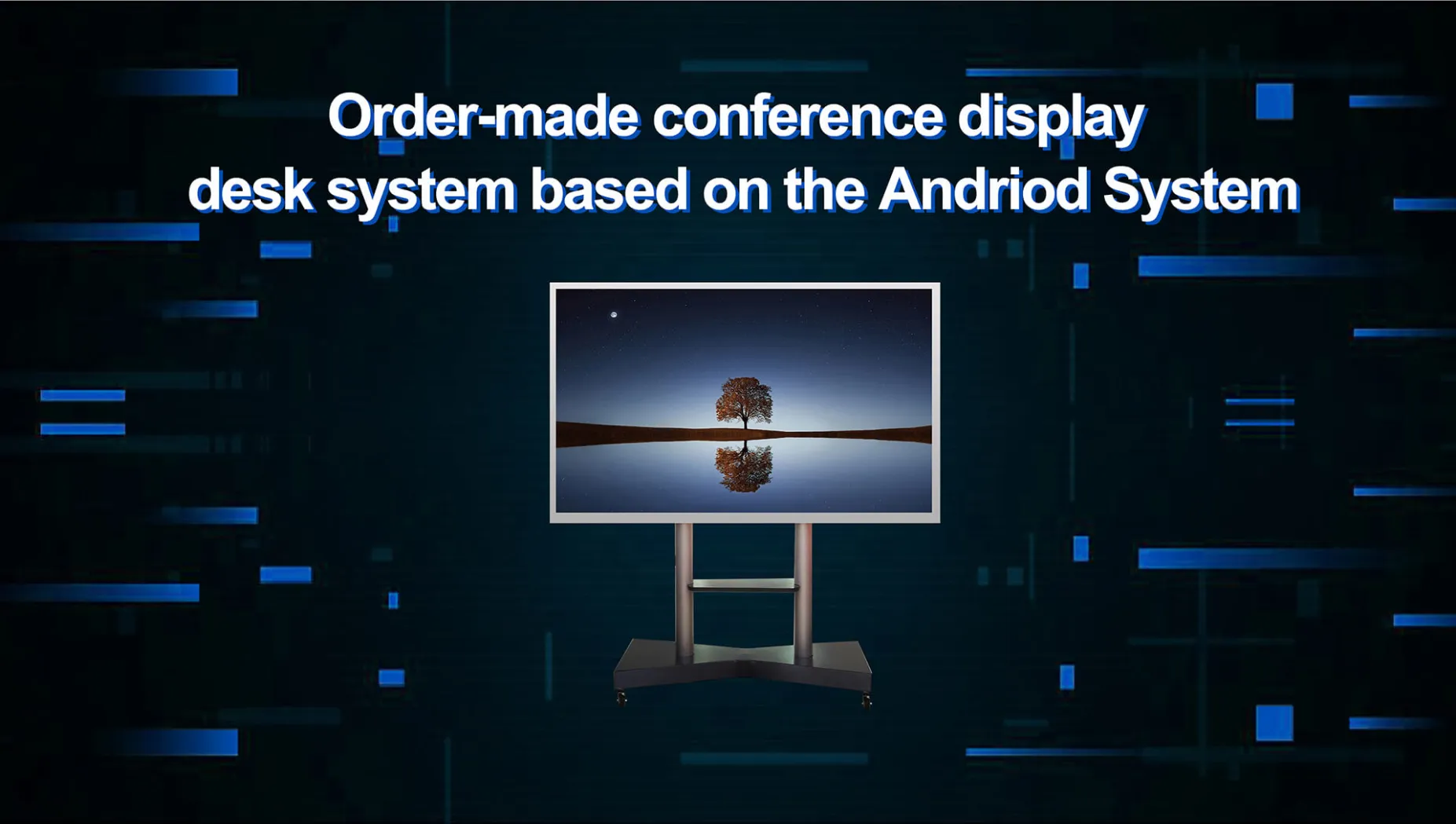

ZHANXIN COB product, have bluetooth remote controller. Resolution of each up to 1920*1080 with 60HZ. Two type of installation:wall mounting and standing. Order made conference display desk system based on the Android system. It can be used as a home or a conference. It can add a touch system, high-definition highlight, and the size can be customized. Waterproof and wear-resistant, easy to maintain.

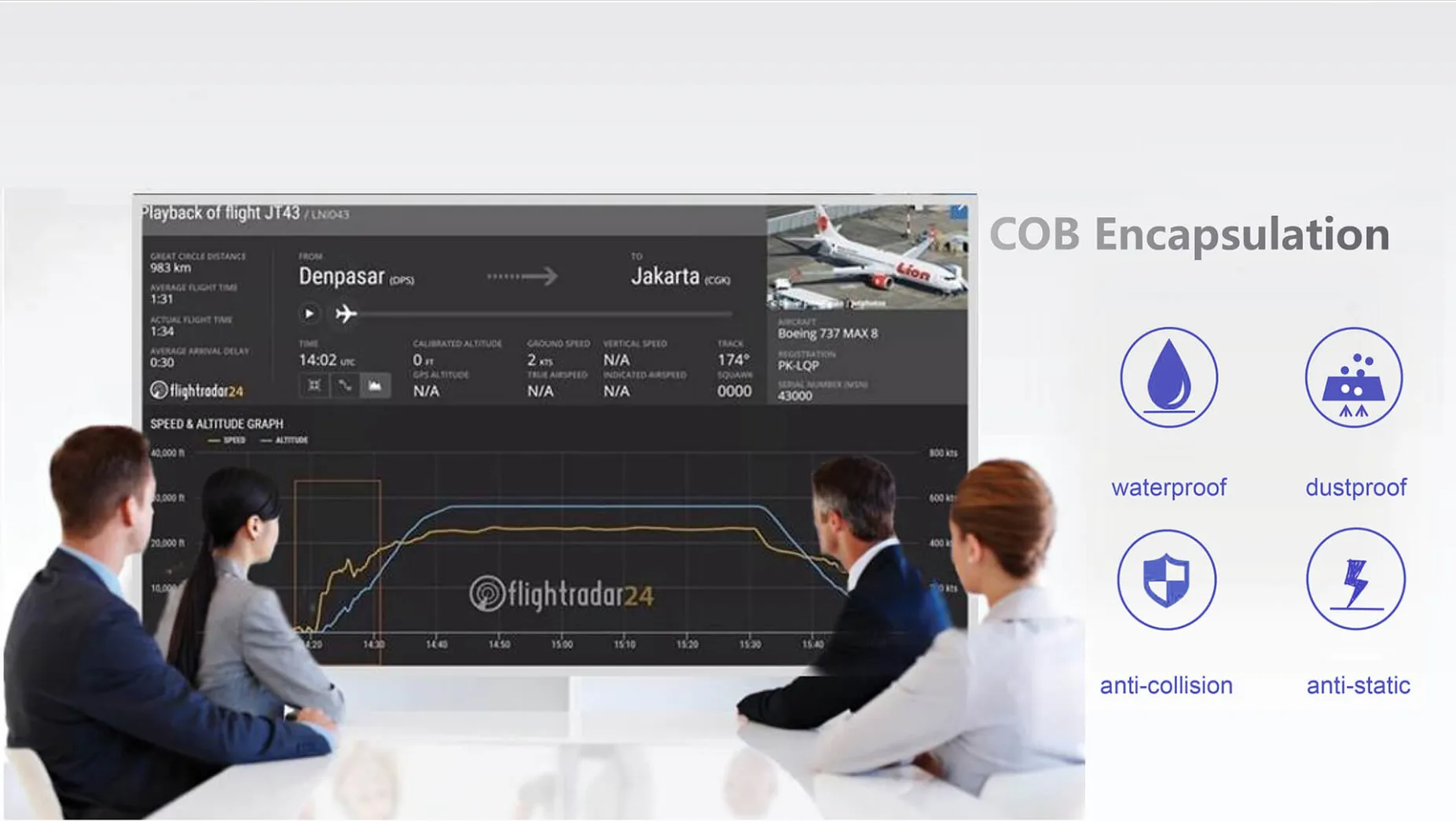

● Waterproof, dustproof
● Anti-collision, anti-static

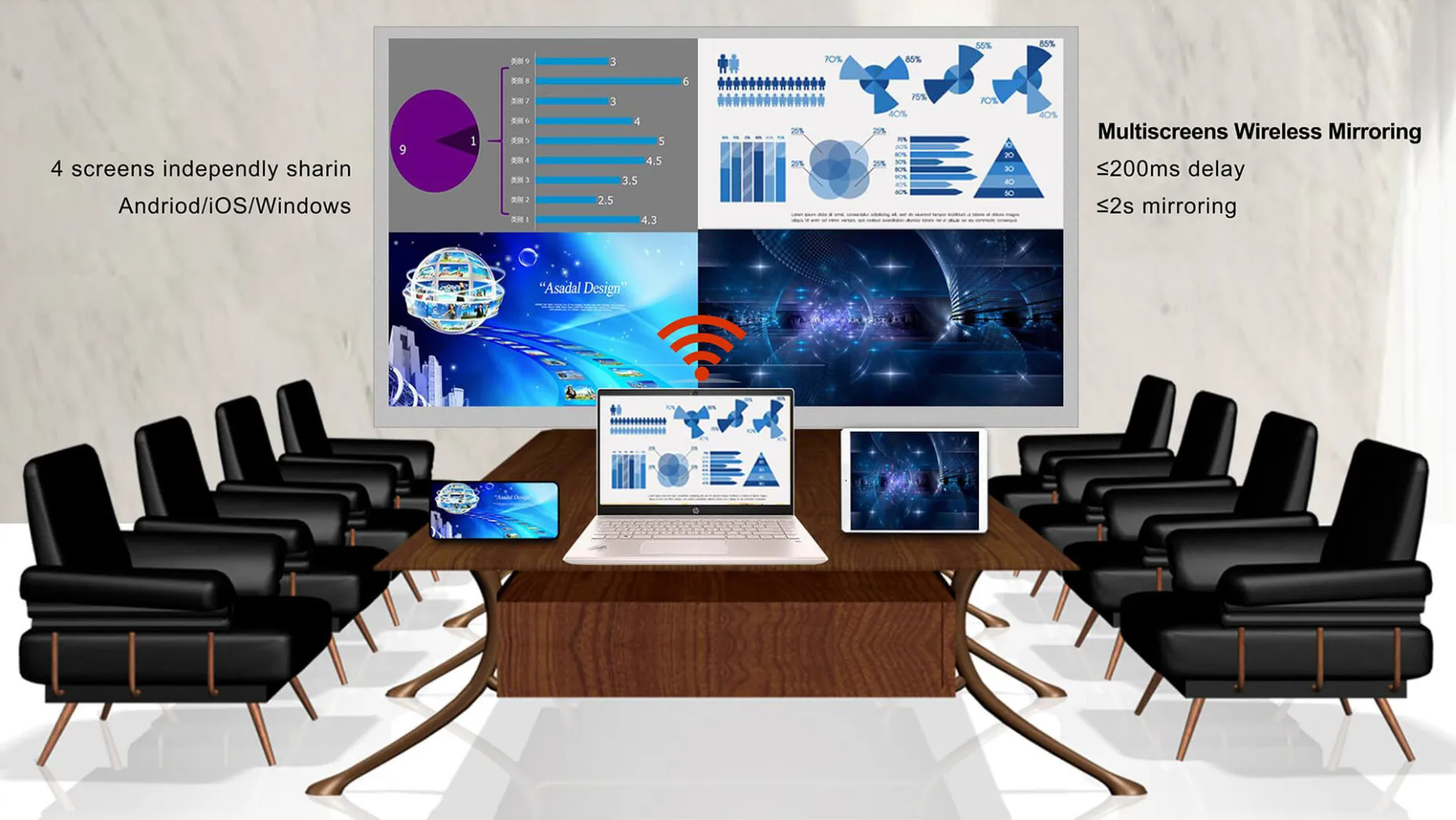

● Multiscreens wireless mirroring

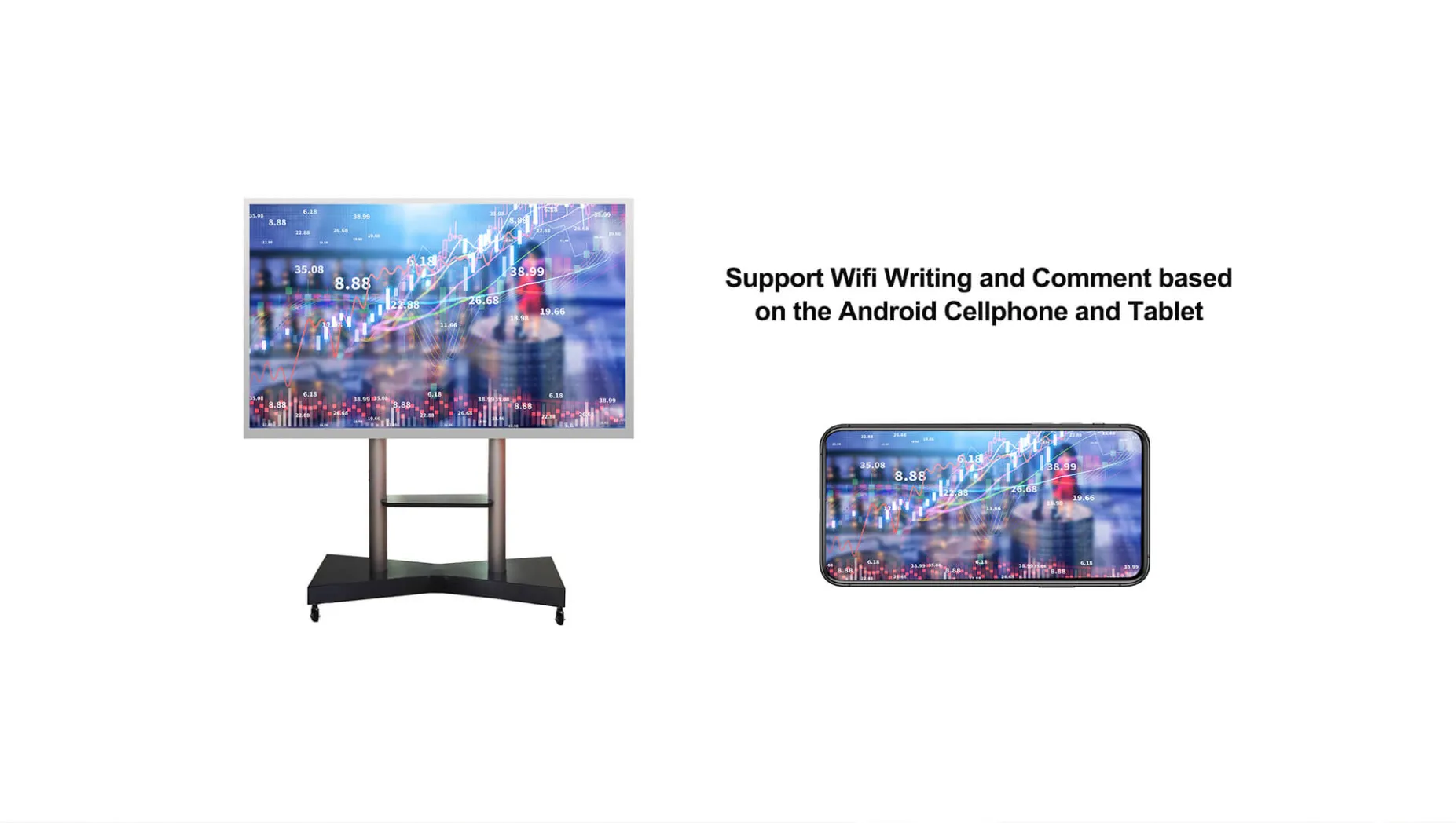

● Support Wifi writing and comment
● Based on the Android Cellphone and tablet
● Can be connected to the mouse, keyboard
● Camera, Loudspeaker and laser pointer
● Bigger than bigger, seamless plicing
| Product specification | |||
| Pixel Pitch | P0.9375 | P1.25 | P1.35 |
| Screen Size/Inches | 81 | 108 | 3.05*1.8m |
| Scree Size with Frame | 1.85m*1.125m | 2.45m*1.46m | 3.05*1.8m |
| LED Encapsulation | COB | COB | COB |
| Screen Resolution | 1920*1080 | 1920*1080 | 1920*1080 |
| Aspect Ration | 16:09:00 | 16:09:00 | 16:09:00 |
| Pixel Pit | P0.9375 | P1.25 | P1.5625 |
| Refresh Rate | 3840HZ | 3840HZ | 3840HZ |
| Brightness | 350cd/㎡ | 350cd/㎡ | 350cd/㎡ |
| Viewing Angle | ≥170° | ≥170° | ≥170° |
| Contrast Ratio | 10000:1 | 10000:1 | 10000:1 |
| Color Temperature | 3200k-9300k | 3200k-9300k | 3200k-9300k |
| Grey Scale | 14bits | 14bits | 14bits |
| Weight | 150kg | 220kg | 300kg |
| Average power consumption | 0.36kw | 0.96kw | 1kw |
| Maximum power consumption | 1.17kw | 2.08kw | 3.25kw |
| Installation&Maintenance | Front installation & maintenance | ||
| Adviced viewing distance | ≥1.5m | ≥2.5m | ≥3m |
| Adviced Conference room | 30-50㎡ | 50-90㎡ | 90-120㎡ |
