Rental Events Case
superior quality led display R1 Series.There are lines and curves available.The curve angel is ±15°.Its ergonomic design allows you to easily install and grasp with only one hand.There are two module sizes, 250 * 250mm and 500 * 500mm.R1 series is very suitable for indoor installation and use.
┃ Product Description
High-quality Rental led display R1 Series.The light and thin box allows you to easily take and install.Double quick lock and integrated power supply design make daily use more convenient and safe.Its ergonomic design allows you to easily install and grasp with only one hand.Private design of PCB,Wide viewing angle, no reflectioncan can create a better display effect.There are two module sizes, 250 * 250mm and 500 * 500mm.R1 series is very suitable for indoor use，It has a better audio - visual experience indoor.
┃ Product Parameters
Indoor | Outdoor | |||||
Pixel patch | 2.604 | 2.976 | 3.91 | 4.81 | 3.91 | 4.81 |
LED lamp | SMD2020 | SMD2020 | SMD2020 | SMD2020 | SMD1921 | SMD1921 |
Density | 262144dots/m2 | 112896dots/m2 | 112896dots/m2 | 43264dots/m2 | 65536dots/m2 | 43264dots/m2 |
Brightness | 800-1000nits | 800-1000nits | 800-1000nits | 800-1000nits | ≥ 3500nits | ≥ 3500nits |
IP rating | IP31 | IP31 | IP31 | IP31 | IP65 | IP65 |
Cabinet Materiel | Die-casting Aluminum | |||||
Scan | 24scan | 24scan | 16scan | 13scan | 16scan | 13scan |
Module weight | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg |
Cabinet Weight | 7.5kg | 7.5kg | 7.5kg | 7.5kg | 8kg | 8kg |
Module size | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*500mm | 250*500mm |
Cabinet size | 500*500*85mm | 500*500*85mm | 500*500*85mm | 500*500*85mm | 500*500*85mm | 500*500*85mm |
Module pixel | 96*96dots | 96*96dots | 64*64dots | 52*52dots | 64*128dots | 52*104dots |
Cabinet pixel | 192*192dots | 192*192dots | 128*128dots | 104*104dots | 128*128dots | 104*104dots |
Max power | 500w/sqm | 500w/sqm | 500w/sqm | 500w/sqm | 550w/sqm | 550w/sqm |
Average Power | 160w/sqm | 160w/sqm | 160w/sqm | 160w/sqm | 200w/sqm | 200w/sqm |
Viewing Angle | Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg | |||||
Control way | Synchronous/asynchronous | |||||
Gray scale | 16bit | |||||
Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | |||||
Work humidity | 10% ~ 90% | |||||
Work temperature | ﹣20 ~﹢65℃ | |||||

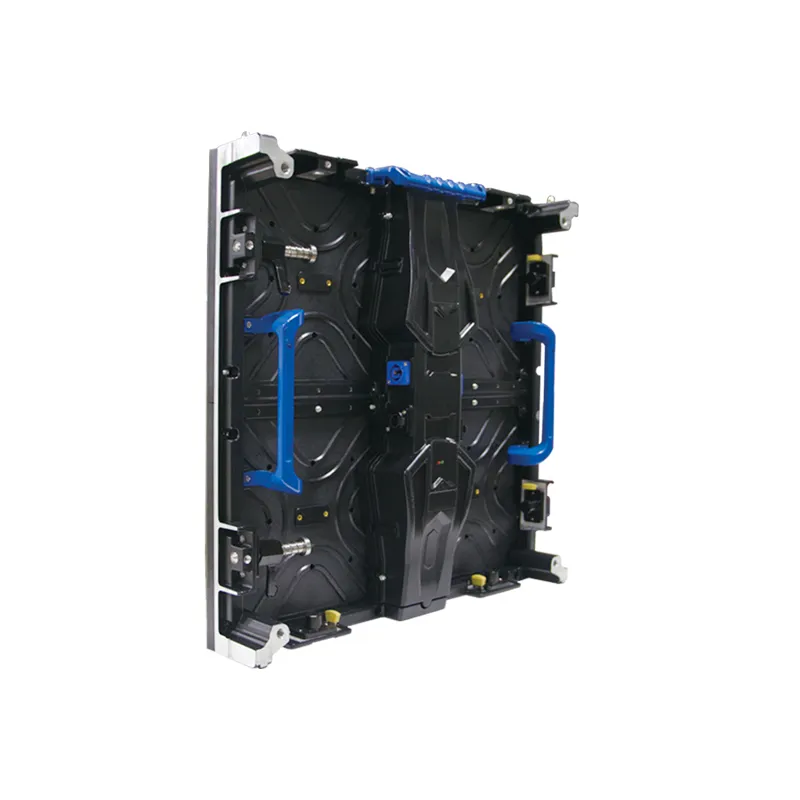

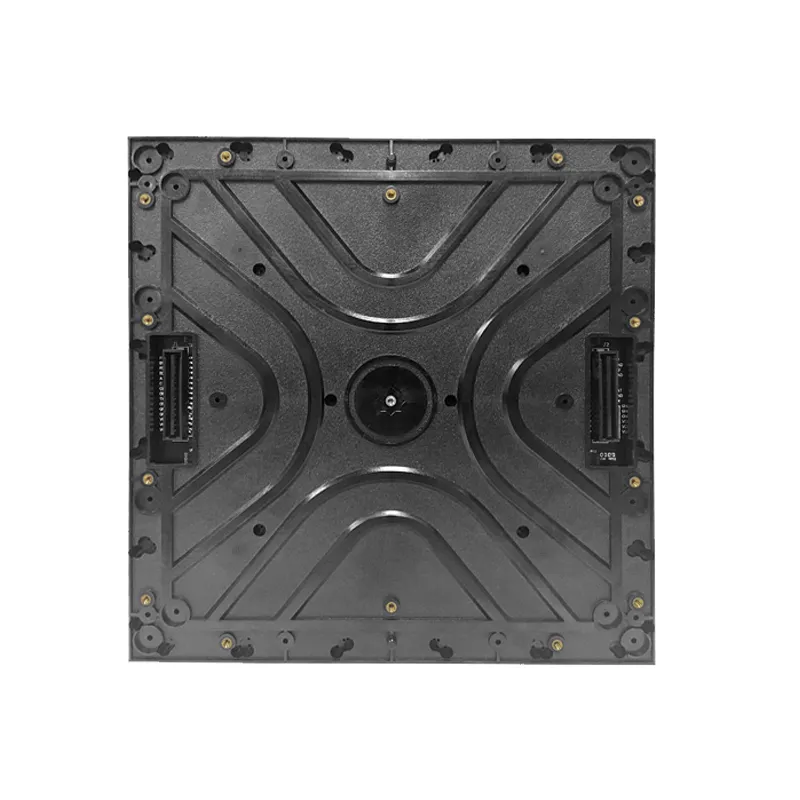

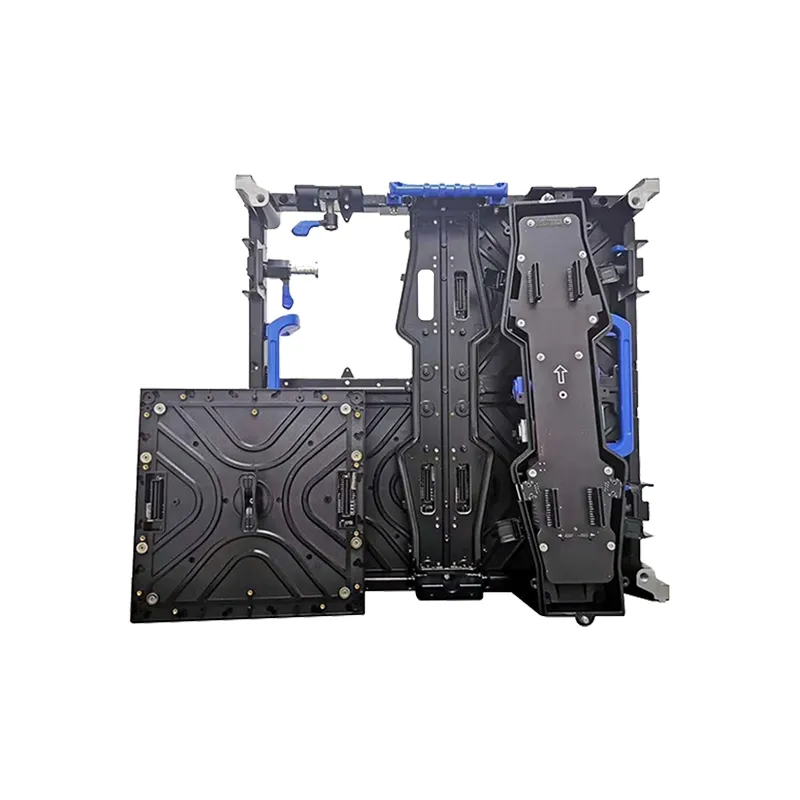

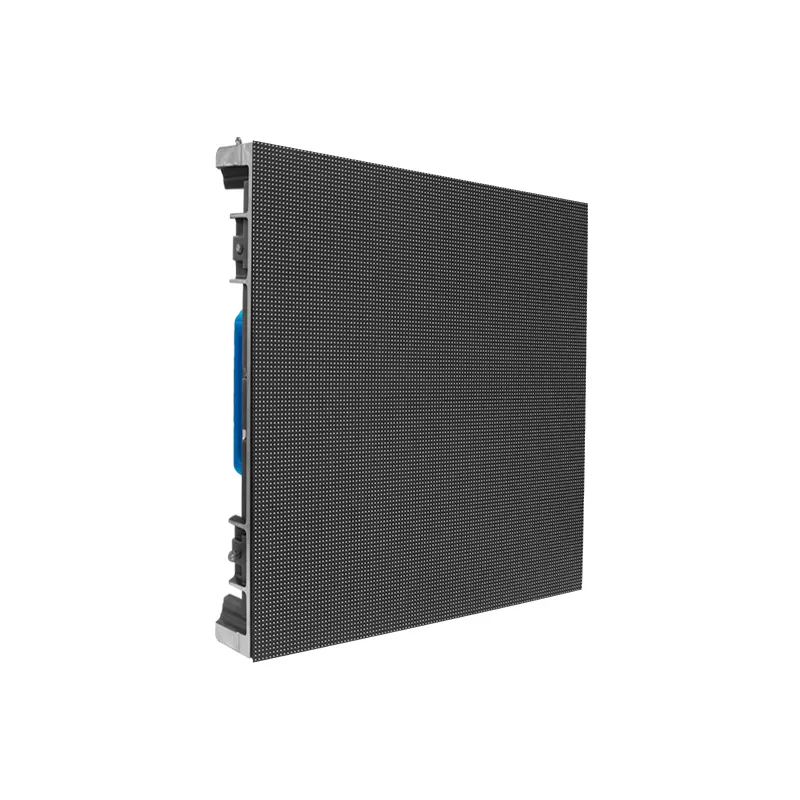

┃ Product Display
┃ Our Service for you
Purchase phase
1.Our customer service is online 24 hours a day to respond to your needs.
2. All inquiries will be answered within 24 hours
3. Most of our products provide customized services for your needs
After Sale phase
1.All products enjoy a one-year warranty period, and we will replace some parts for you free.
2.All of our products have passed the testing of ATC and TMC, and there are few quality problems. They are well received by users all over the world.
┃ Delievery time
