Rental Events Case
● Integrated power design saves time

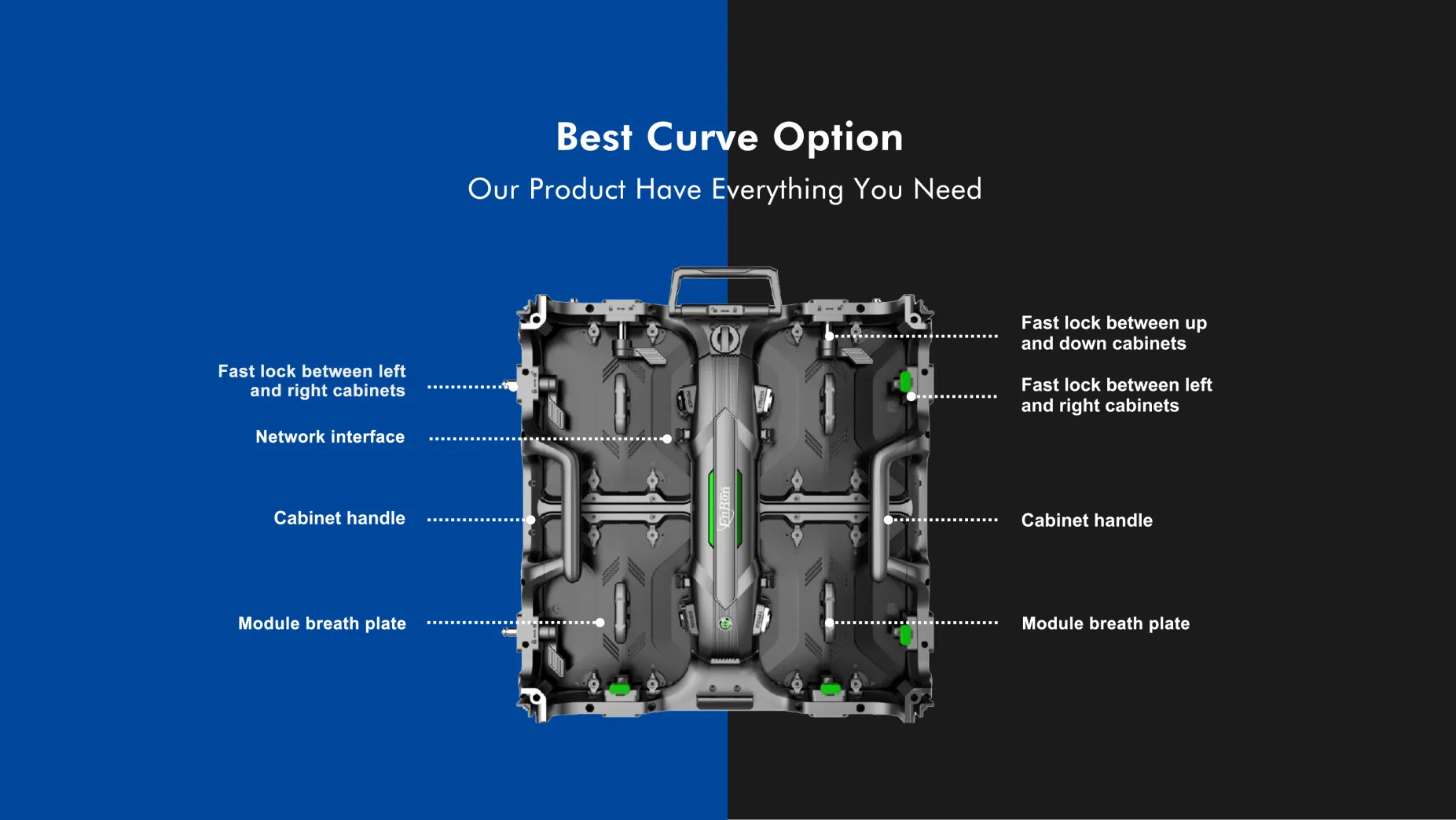

● Double quick lock design
● More durable, single operation
● Quick installation and maintenance

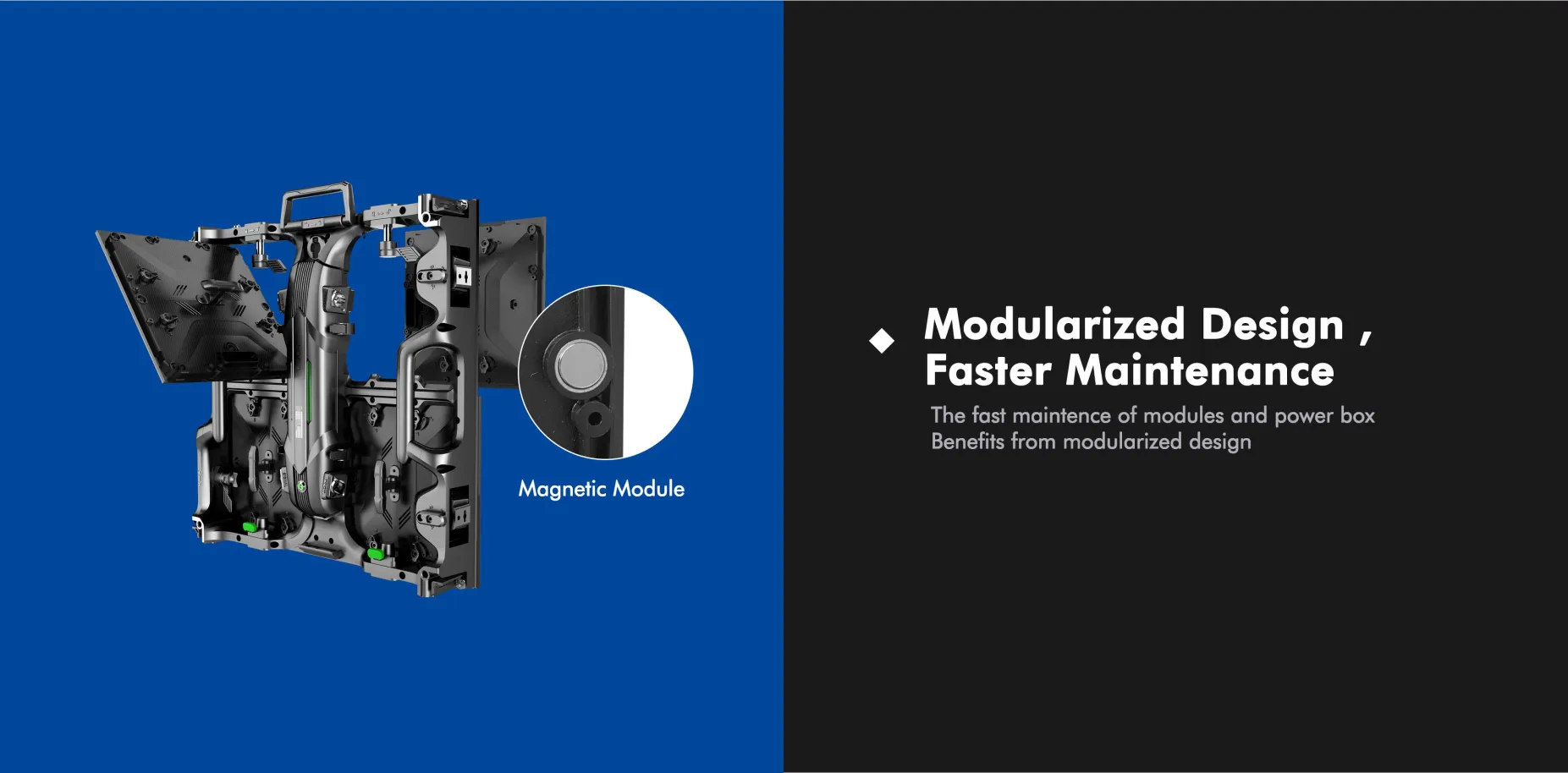

● Modular design of power control
● No wire is needed to connect
● The cabinet is light and thin
● Unique module design, no left and right
● Private design of PCB
● Same HUB could useing all kinds of pixel
● Wide viewing angle, no reflection
| Indoor | Outdoor | |||||
| Pixel Pitch | 1.953 | 2.604 | 2.976 | 3.9 | 2.604 | 2.976 |
| LED lamp | SMD1515 | SMD2020 | SMD2020 | SMD2020 | SMD1415 | SMD1415 |
| Density | 262144dots/m2 | 147456dots/m2 | 112896dots/m2 | 65536dots/m2 | 262144dots/m2 | 112896dots/m2 |
| Brightness | 800-1000nits | 800-1000nits | 800-1000nits | 800-1000nits | ≥ 3500nits | ≥ 3500nits |
| IP rating | IP31 | IP31 | IP31 | IP31 | IP65 | IP65 |
| Cabinet Materiel | Die-casting Aluminum | Die-casting Aluminum | ||||
| Scan | 32scan | 24scan | 21scan | 16scan | 24scan | 21scan |
| Module weight | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg |
| Cabinet Weight | 7.5kg | 7.5kg | 7.5kg | 7.5kg | 8kg | 8kg |
| Module size | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*500mm | 250*500mm |
| Cabinet size | 500*500*85mm | 500*500*85mm | 500*500*85mm | 500*500*85mm | 500*500*85mm | 500*500*85mm |
| Module pixel | 128*128dots | 96*96dots | 84*84dots | 64*64dots | 64*128dots | 52*104dots |
| Cabinet pixel | 256*256dots | 192*192dots | 168*168dots | 128*1284dots | 192*192dots | 168*168dots |
| Max Power | 650w/sqm | 500w/sqm | 500w/sqm | 500w/sqm | 550w/sqm | 550w/sqm |
| Average Power | 230w/sqm | 160w/sqm | 160w/sqm | 160w/sqm | 200w/sqm | 200w/sqm |
| Viewing Angle | Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg | |||||
| Control way | synchronous/asynchronous | |||||
| Brightness control | 256 level | |||||
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | |||||
| Work humidity | 10% ~ 90% | |||||
| Work temperature | ﹣20 ~﹢65℃ | |||||
