Rental Events Case
ZHANXIN B series can be flexibly applied to different installation requirements of leasing; it is easy to install, use, maintain and saves time; The screen has high refresh frequency, vivid color, strong adaptability, windproof, and waterproof. B series product very popular for india market, both indoor and outdoor.

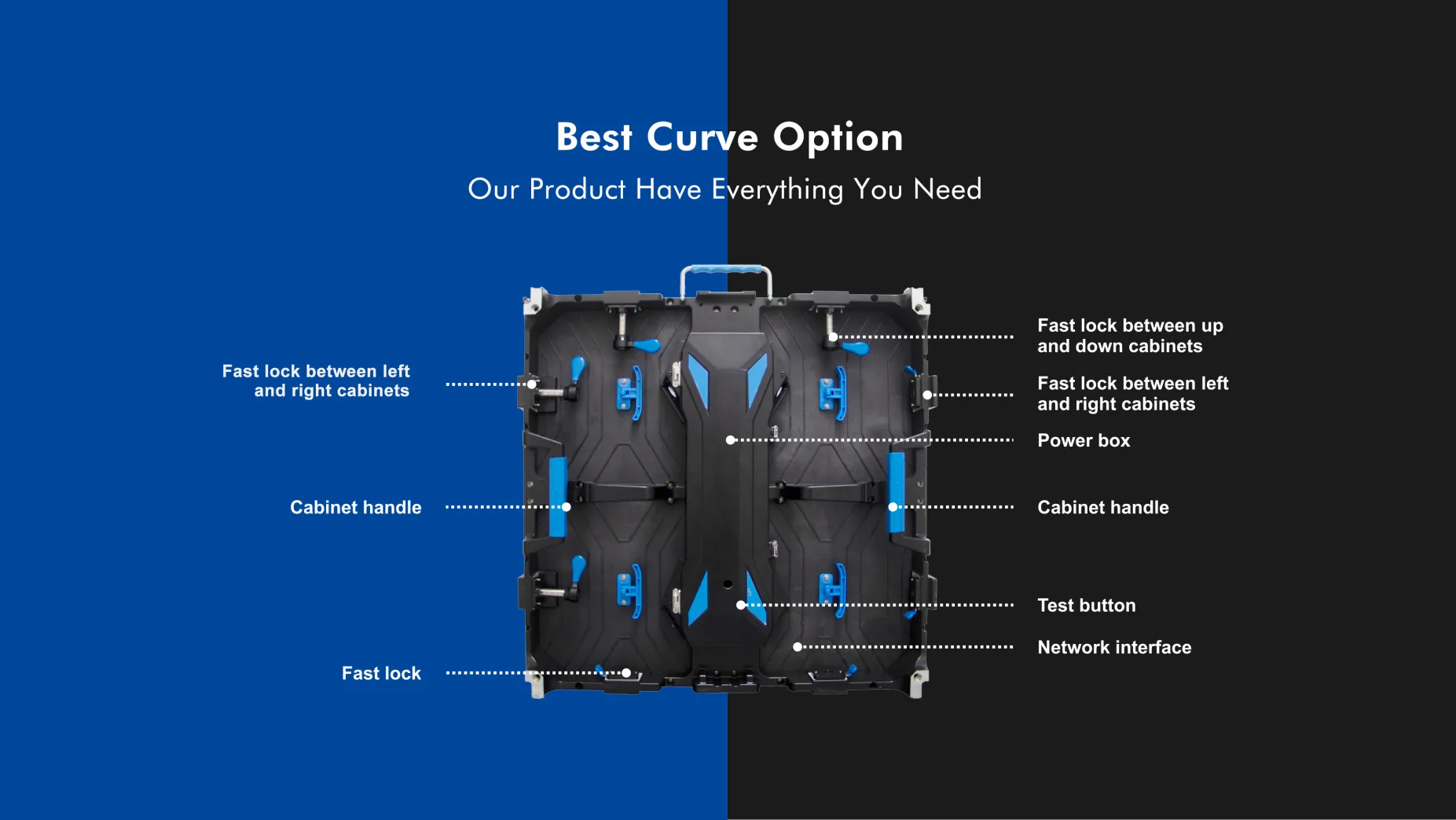

● Integrated power design saves time

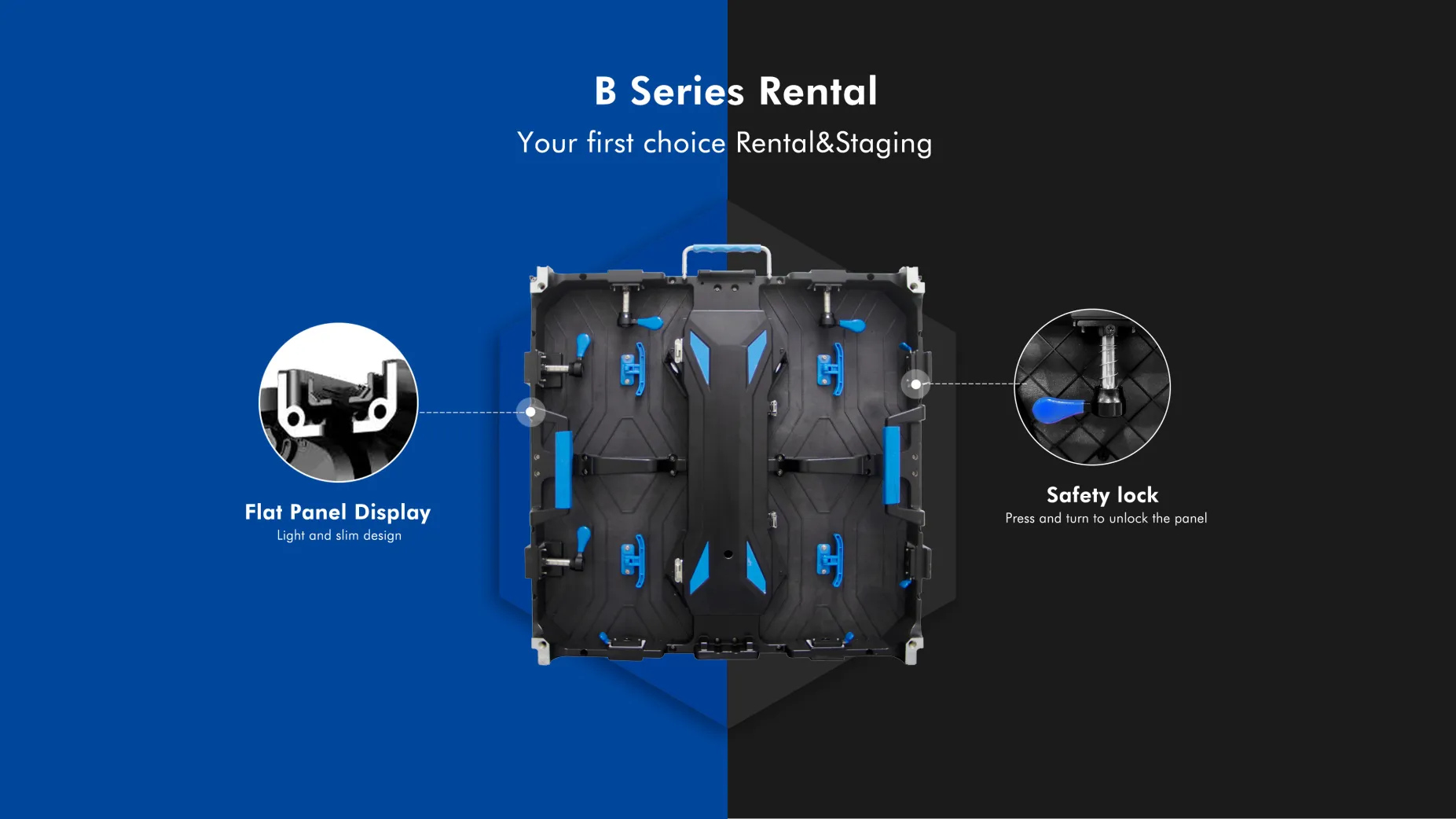

● Double quick lock design
● 288*288mm modules
● 576*576mm cabinet
● Signal backup, never black screen
● No wire is needed to connect
● The cabinet is light and thin
● Unique module design, no left and right
● Private design of PCB
● Same HUB could useing all kinds of pixel
● Wide viewing angle, no reflection
| Indoor | Outdoor | ||||
| Pixel Pitch | 3 | 3.84 | 4.8 | 3.84 | 4.8 |
| LED lamp | SMD2020 | SMD2020 | SMD2020 | SMD1921 | SMD1921 |
| Density | 111111dot/m2 | 67817dots/m2 | 43403dots/m2 | 67817 dots/m2 | 43403dots/m2 |
| Brightness | 800-1000nits | 800-1000nits | 800-1000nits | 3500nits | 3000-3500nits |
| IP rating | IP31 | IP31 | IP31 | IP65 | IP65 |
| Cabinet Materiel | Die-casting Aluminum | Die-casting Aluminum | |||
| Scan | 32scan | 25scan | 10-15scan | 15scan | 10-15scan |
| Module weight | 1kg | 1kg | 1kg | 1.5kg | 1.5kg |
| Cabinet Weight | 8.5kg | 8.5kg | 8.5kg | 9.25kg | 9.25kg |
| Module size | 288*288mm | 288*288mm | 288*288mm | 288*288mm | 288*288mm |
| Cabinet size | 576*576*85mm | 576*576*85mm | 576*576*85mm | 576*576*85mm | 576*576*85mm |
| Module pixel | 96*96dots | 75*75dots | 60*60dots | 75*75dots | 60*60dots |
| Cabinet pixel | 192*192dots | 150*150dots | 120*120dots | 150*150dots | 120*120dots |
| Max Power | 500w/sqm | 500w/sqm | 500w/sqm | 550w/sqm | 550w/sqm |
| Average Power | 160w/sqm | 160w/sqm | 160w/sqm | 200w/sqm | 200w/sqm |
| Viewing Angle | Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg | ||||
| Control way | synchronous/asynchronous | ||||
| Brightness control | 256 level | ||||
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | ||||
| Work humidity | 10% ~ 90% | ||||
| Work temperature | ﹣20 ~﹢65℃ | ||||
