Special-Shaped Case
The flat circular screen designed by ZHANXIN adopts a circular growth design scheme, which can increase the diameter layer by layer to realize flat circular screens of different sizes, which can fully reduce product design and production costs, solve customer design and development costs, and achieve The fusion of technology and beauty.
● Uniform tapping: pixel to pixel image
● Seamless splicing: between cabinets and modules
● Synchronous and asynchronous compatible
● Supporting offline and online model system
● Convenient maintenance: rear and front service
● Structure use iron design，easy for shape option

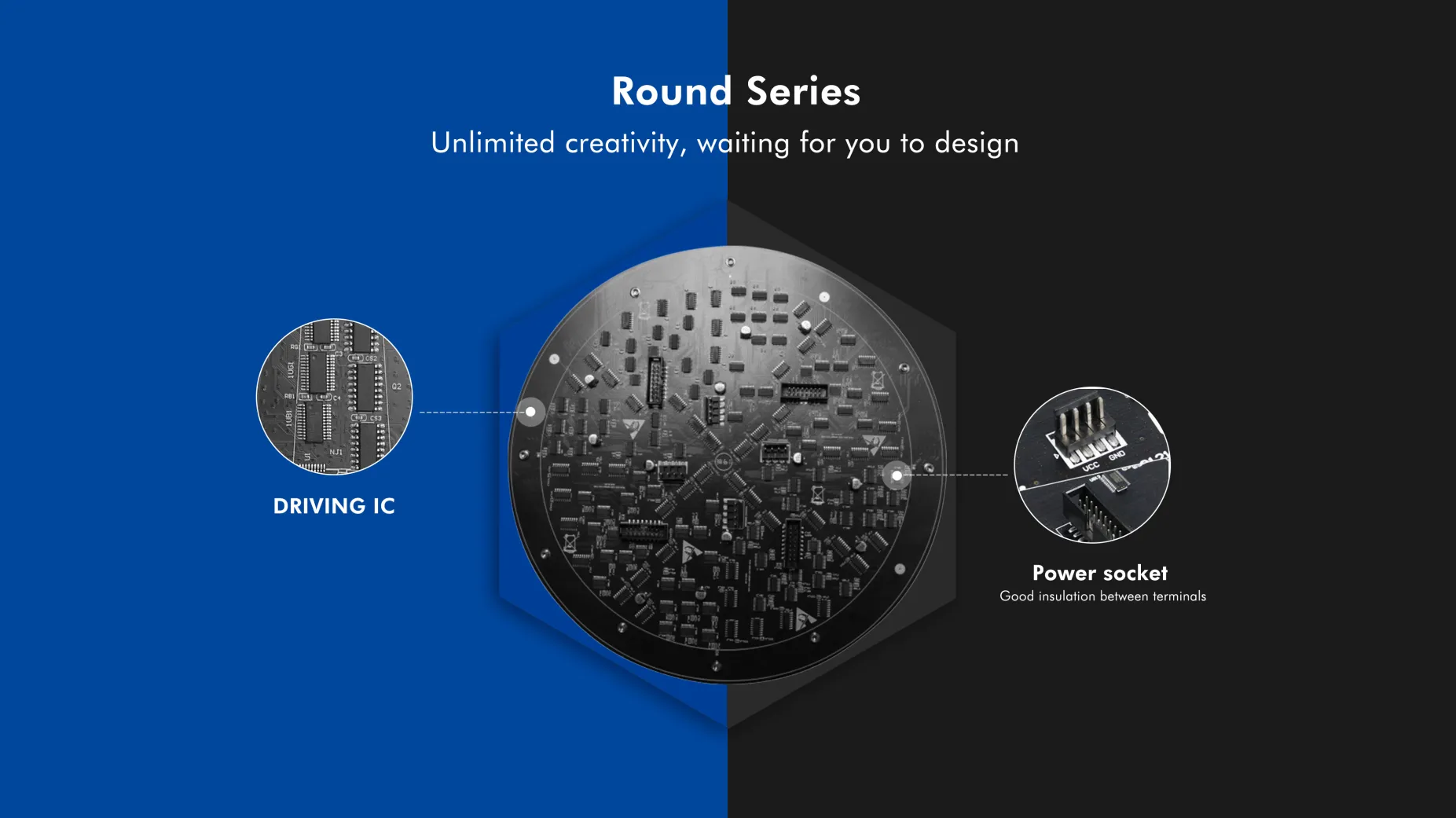

● Small and special PCB design
● Both indoor and outdoor option
● The display pixle will be made by project demand
| Item | Diameter 0.5m | Diameter 2.5m | Diameter 1.3m | Diameter 1.8m | Diameter 3m |
| Brightness | 800Cd/sqm | 800Cd/sqm | 800Cd/sqm | 800Cd/sqm | 800Cd/sqm |
| Chip | 5124IC | 5124IC | 5124IC | 5124IC | 5124IC |
| Package | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD2121 |
| Diameter | 0.5米 | 0.7米 | 1.3米 | 1.8米 | 3米 |
| Area | 0.19625 | 0.38465 | 1.32665 | 2.5434 | 7.065 |
| Thickness | 80mm | 80mm | 80mm | 80mm | 80mm |
| Weight | 10kg | 20kg | 30kg | 100kg | 280kg |
| Pixel Pitch | P2.5 | P2.5 | P3 | P3 | P3 |
| Pixel density | 160000 | 160000 | 111111 | 111111 | 111111 |
| Full screen points | 31400 | 61544 | 147405 | 282600 | 784999 |
| Horizontal | 120° | 120° | 120° | 120° | 120° |
| Vertical | 120° | 120° | 120° | 120° | 120° |
| Color temperature | 5000-11000k | 5000-11000k | 5000-11000k | 5000-11000k | 5000-11000k |
| Average Power | 280W | 280W | 280W | 280W | 280W |
| Max Power | 800W | 800W | 800W | 800W | 800W |
| Control System | ENBON-DZ | ||||
| Way to control | Synchronize | ||||
| Waterproof level | For indoor use only | ||||
| working temperature | ﹣20 ~﹢40℃ | ||||
