Indoor Fixed LED display

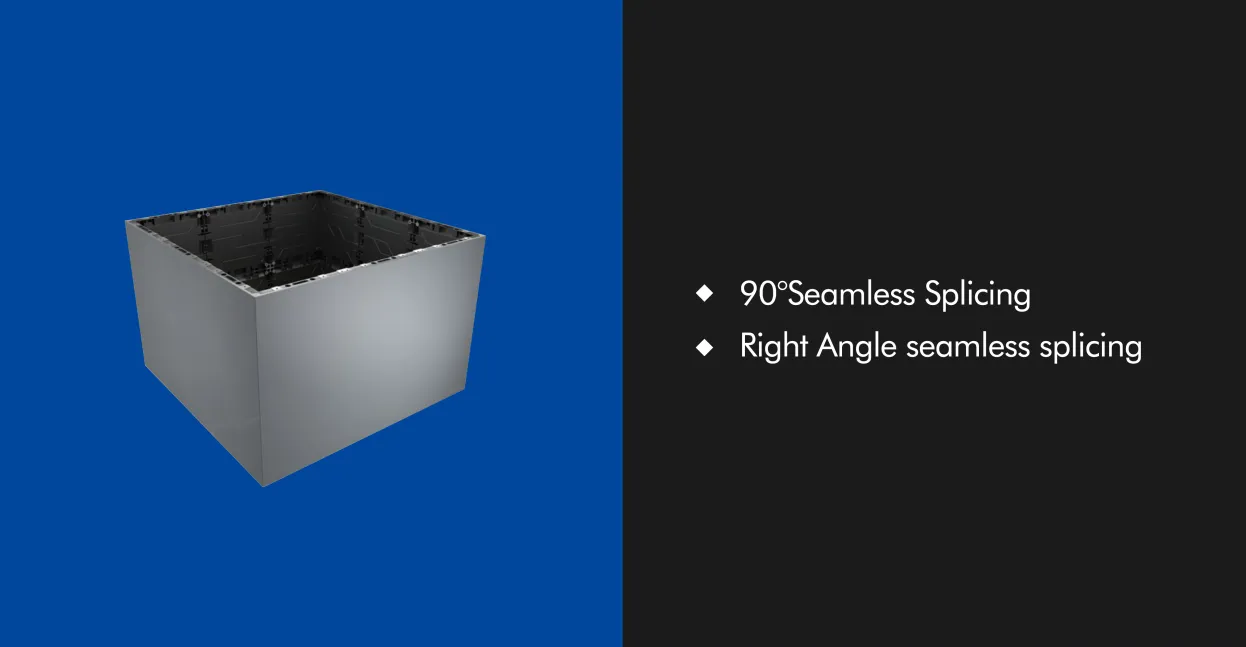

ZHANXIN is the perfect choice for indoor fixed installation. It has full front maintenance and high cost performance. It can make 90° cubes and can do any cutting. It is the first choice for indoor engineering cases.
● Easy maintaince and service
● ZHANXIN FS could do with P1.5 P1.8 P2.5 P3.0
● Perfect screen flatness
● Support fully front service
● 240mm*240mm size module

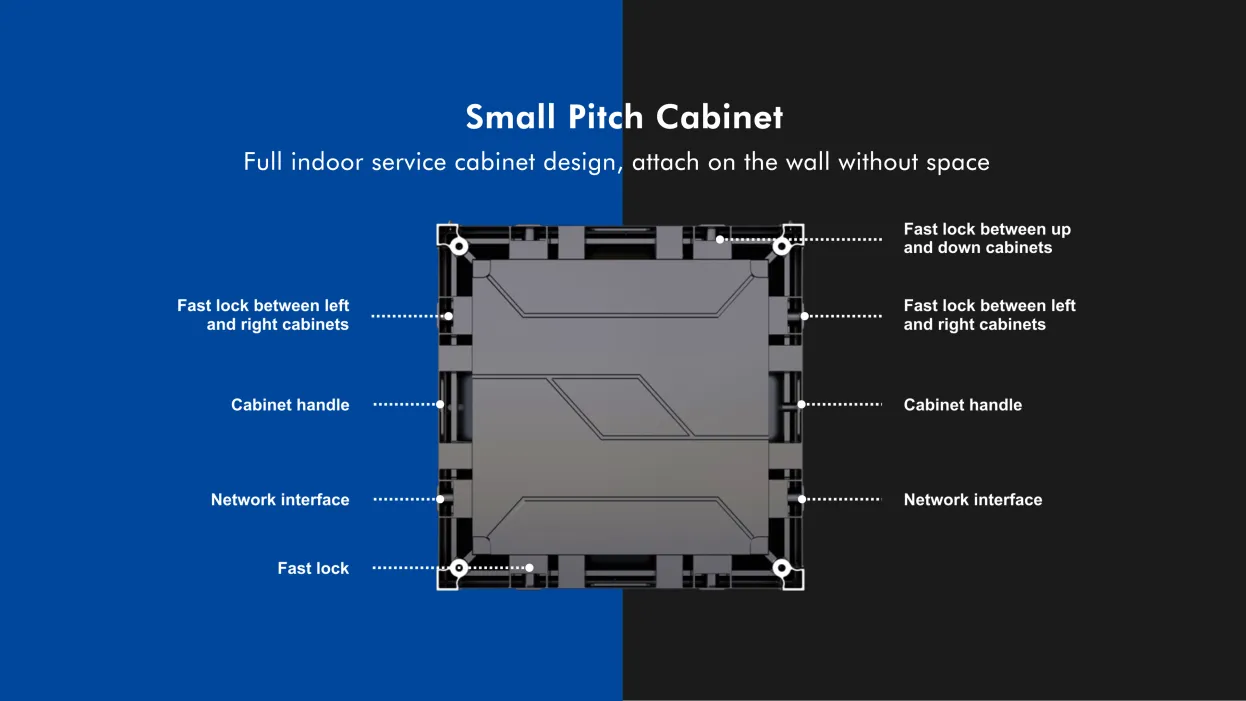

● 480mm*480mm size cabinet
● Different modules use same HUB
● ZHANXIN FN could make 2K 4K 8K Vision studio
| INDOOR | ||||||
| Pixel Pitch | 1.579 | 1.67 | 1.875 | 2 | 2.5 | 3 |
| Cabinet Resolution | 304*304 dots | 288*288 dots | 256*256 dots | 240*240 dots | 192*192 dots | 160*160 dots |
| Pixel Density (dots/m²) | 401111dots/m2 | 360000dots/m2 | 284444dots/m2 | 250000dots/m2 | 160000dots/m2 | 111111dots/m2 |
| Cabinet Dimension (W×H×D) | 480*480*65 mm | 480*480*65 mm | 480*480*65 mm | 480*480*65 mm | 480*480*65 mm | 480*480*65 mm |
| Cabinet Material | Die-casting Aluminum | |||||
| Cabinet Weight (kg) | 5.5kg | 5.5kg | 5.5kg | 5.5kg | 5.5kg | 5.5kg |
| Color Depth (Bit) | 13 ~14bit | 13 ~14bit | 13 ~14bit | 13 ~14bit | 13 ~14bit | 13 ~14bit |
| Refresh Rate (Hz) | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Driver Mode | Constant Current Driver | Constant Current Driver | Constant Current Driver | Constant Current Driver | Constant Current Driver | Constant Current Driver |
| Brightness (nits) | ≥600nits | ≥600nits | ≥600nits | ≥800nits | ≥900nits | ≥900nits |
| Viewing Angle (H°) | 160 ° | 160 ° | 160 ° | 160 ° | 160 ° | 160 ° |
| Viewing Angle (V°) | 140 ° | 140 ° | 140 ° | 140 ° | 140 ° | 140 ° |
| AC Power Input (V) | AC100V~ 240V | AC100V~ 240V | AC100V~ 240V | AC100V~ 240V | AC100V~ 240V | AC100V~ 240V |
| AC Power Frequency (Hz) | 50~60Hz | 50~60Hz | 50~60Hz | 50~60Hz | 50~60Hz | 50~60Hz |
| Max. Power (W/m²) | 680w/m² | 680w/m² | 570w/m² | 520w/m² | 520w/m² | 550w/m² |
| Avg. Power (W/m²) | 230w/m² | 230w/m² | 200w/m² | 170w/m² | 170w/m² | 190w/m² |
| Operating Temperature (℃ ) | 10℃ ~ 40℃ | 10℃ ~ 40℃ | 10℃ ~ 40℃ | 10℃ ~ 40℃ | 10℃ ~ 40℃ | 10℃ ~ 40℃ |
| IP Rating (IP) | Front IP40 / Rear IP30 | Front IP40 / Rear IP30 | Front IP40 / Rear IP30 | Front IP40 / Rear IP30 | Front IP40 / Rear IP30 | Front IP40 / Rear IP30 |

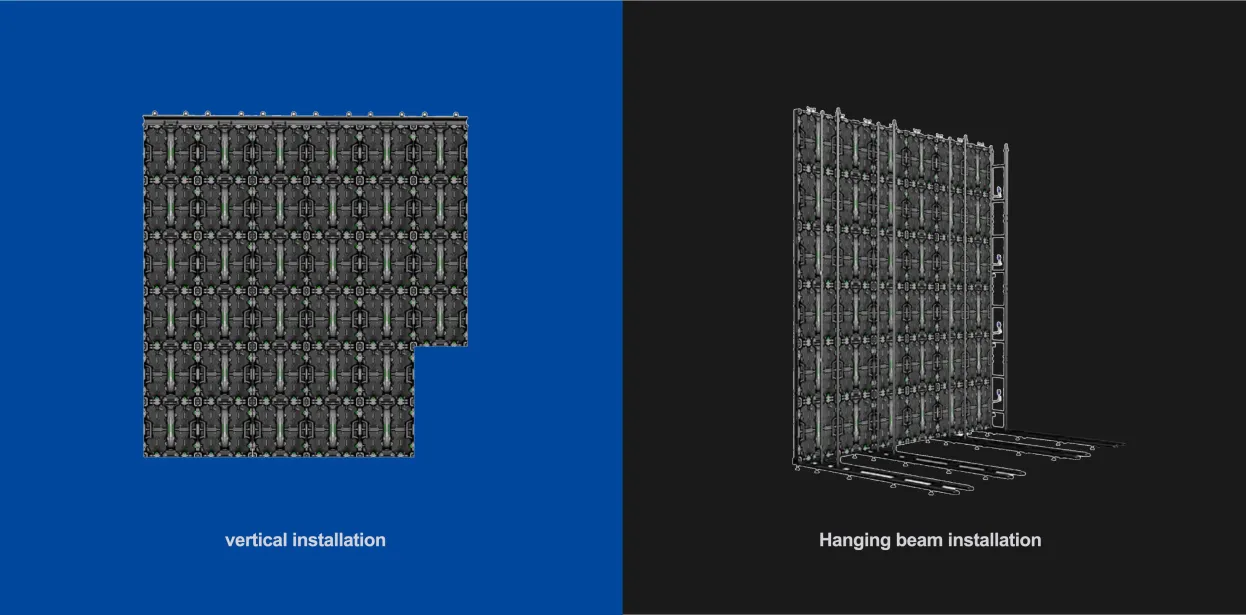

| Installation Type | Fixed / Front Installation | Fixed / Front Installation | Fixed / Front Installation | Fixed / Front Installation | Fixed / Front Installation | Fixed / Front Installation |
| Cabinet Maintenance | Front / Rear Maintenance | Front / Rear Maintenance | Front / Rear Maintenance | Front / Rear Maintenance | Front / Rear Maintenance | Front / Rear Maintenance |
