Indoor Fixed LED display

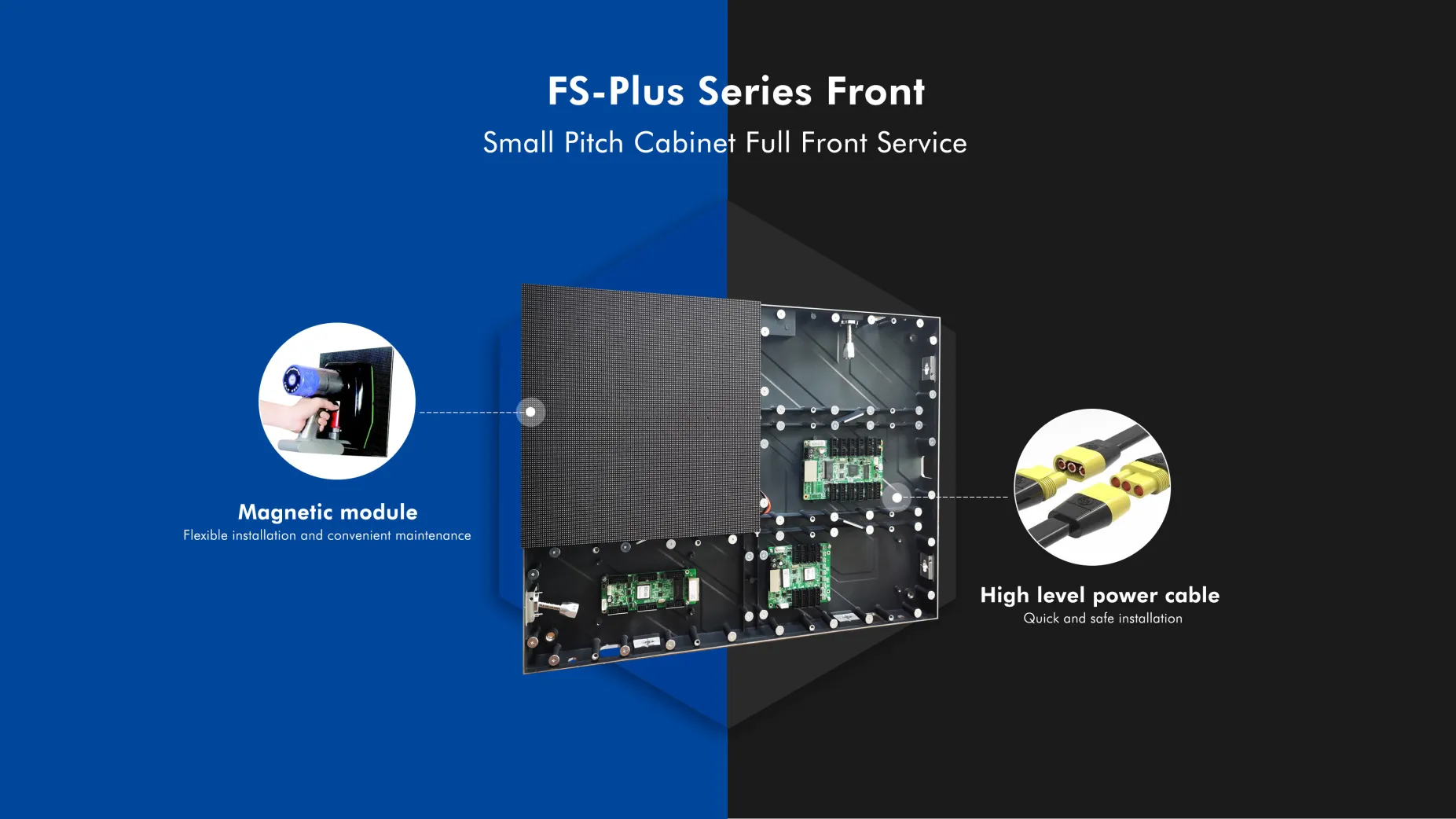

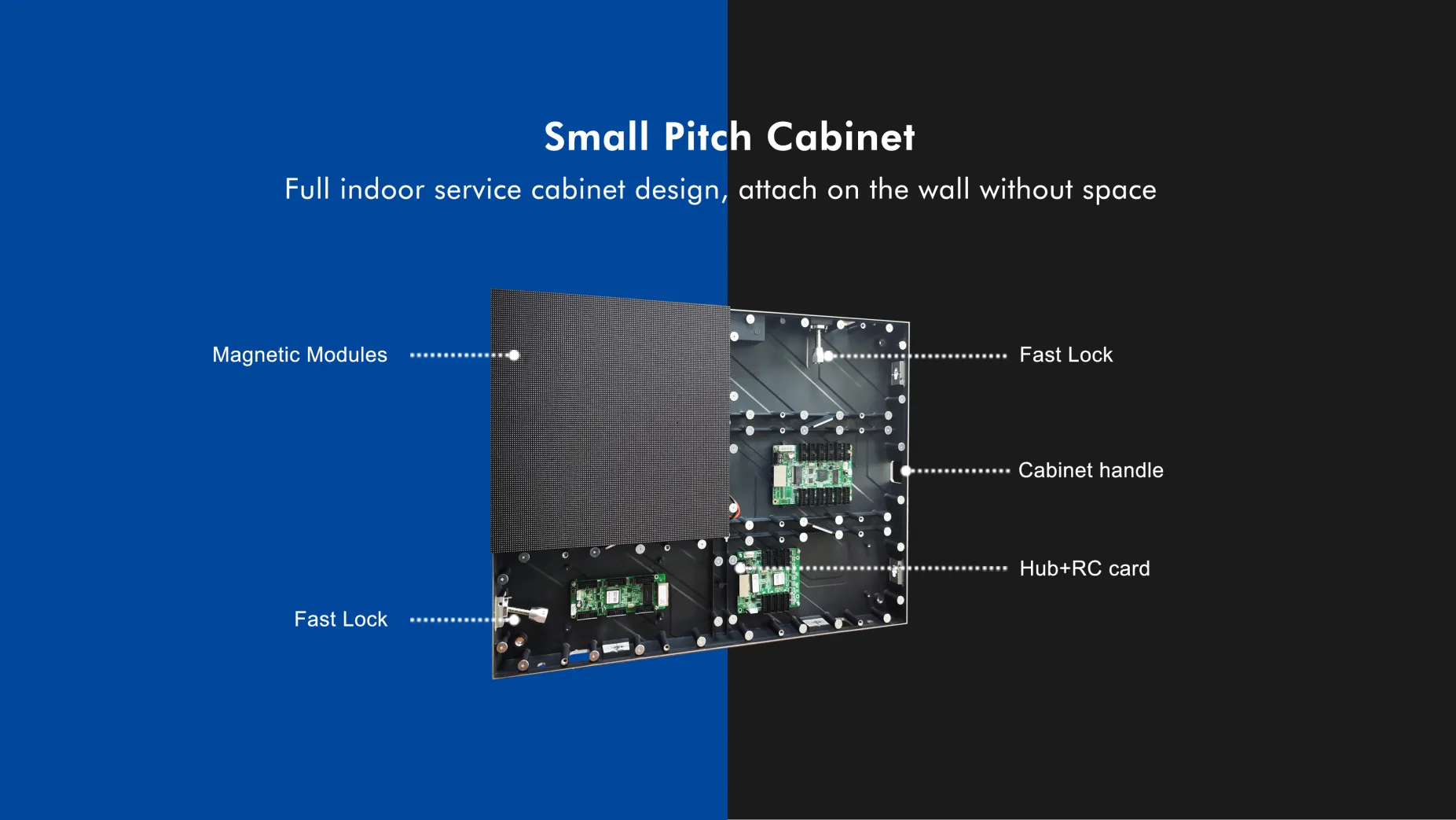

ZHANXIN FS-Plus Series Small pitch Cabinet, with magnetic pre-maintenance, ultra-light, ultra-thin design, weight only 4.3KG, disassembly and maintenance only 20 seconds, IP level 30, high brightness, high contrast, 160 ° large viewing angle, Full front service indoor project solution, cost and function both perfect option.
● Easy maintaince and service
● ZHANXIN FS-Plus with P1.2 P1.5 P1.6 P1.8 P2.0 P2.5
● Perfect screen flatness
● Support fully front service
● 320mm*160mm size module
● 640mm*480mm size cabinet
● Different modules use same magnetic cabinet
● ZHANXIN FS-Plus will have the best cost advantage
| Indoor | |||||
| Pixel Pitch | P1.2 | P1.579 | P1.875 | P2.5 | P3 |
| LED lamp | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Density | 695556dots/m2 | 401111dots/m2 | 284444dots/m2 | 160000dots/m2 | 111111dots/m2 |
| Brightness | 500nits | 600nits | 800nits | 900nits | 900nits |
| IP rating | IP40 | IP40 | IP40 | IP40 | IP40 |
| Cabinet Materiel | Die-casting Aluminum | Die-casting Aluminum | |||
| Scan | 1/31 scan | 1/24 scan | 1/32 scan | 1/32 scan | 1/20 scan |
| Module weight | 0.3kg | 0.3kg | 0.3kg | 0.3kg | 0.3kg |
| Cabinet Weight | 5.5kg | 5.5kg | 5.5kg | 5.5kg | 5.5kg |
| Module size | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Cabinet size | 640*480*85mm | 640*480*85mm | 640*480*85mm | 640*480*85mm | 640*480*85mm |
| Module pixel | 266*134dots | 202*101dots | 170*85dots | 128*64dots | 106*53dots |
| Cabinet pixel | 534*400dots | 405*304dots | 341*256dots | 256*192dots | 213*160dots |
| Max Power | 500w/sqm | 500w/sqm | 550w/sqm | 550w/sqm | 550w/sqm |
| Average Power | 160w/sqm | 160w/sqm | 160w/sqm | 200w/sqm | 200w/sqm |
| Viewing Angle | Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg | ||||
| Control way | synchronous/asynchronous | ||||
| Brightness control | 256 level | ||||
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | ||||
| Work humidity | 10% ~ 90% | ||||
| Work temperature | ﹣20 ~﹢65℃ | ||||
