High-quality Indoor LED Display FN Series Indoor Commerce | ZHANXIN

ZHANXIN FN series fine pitch, ultra small pixel pitch fixed screen. light weight cabinet design, extremely slim. easy maintenance and installation without cables. perfect splicing with a perfect panel ratio of 16:9. wide application range for business conferenc

● Easy maintaince and service

● ZHANXIN FN could do with P1.2 P1.5 P1.6 P1.8

● Perfect screen flatness

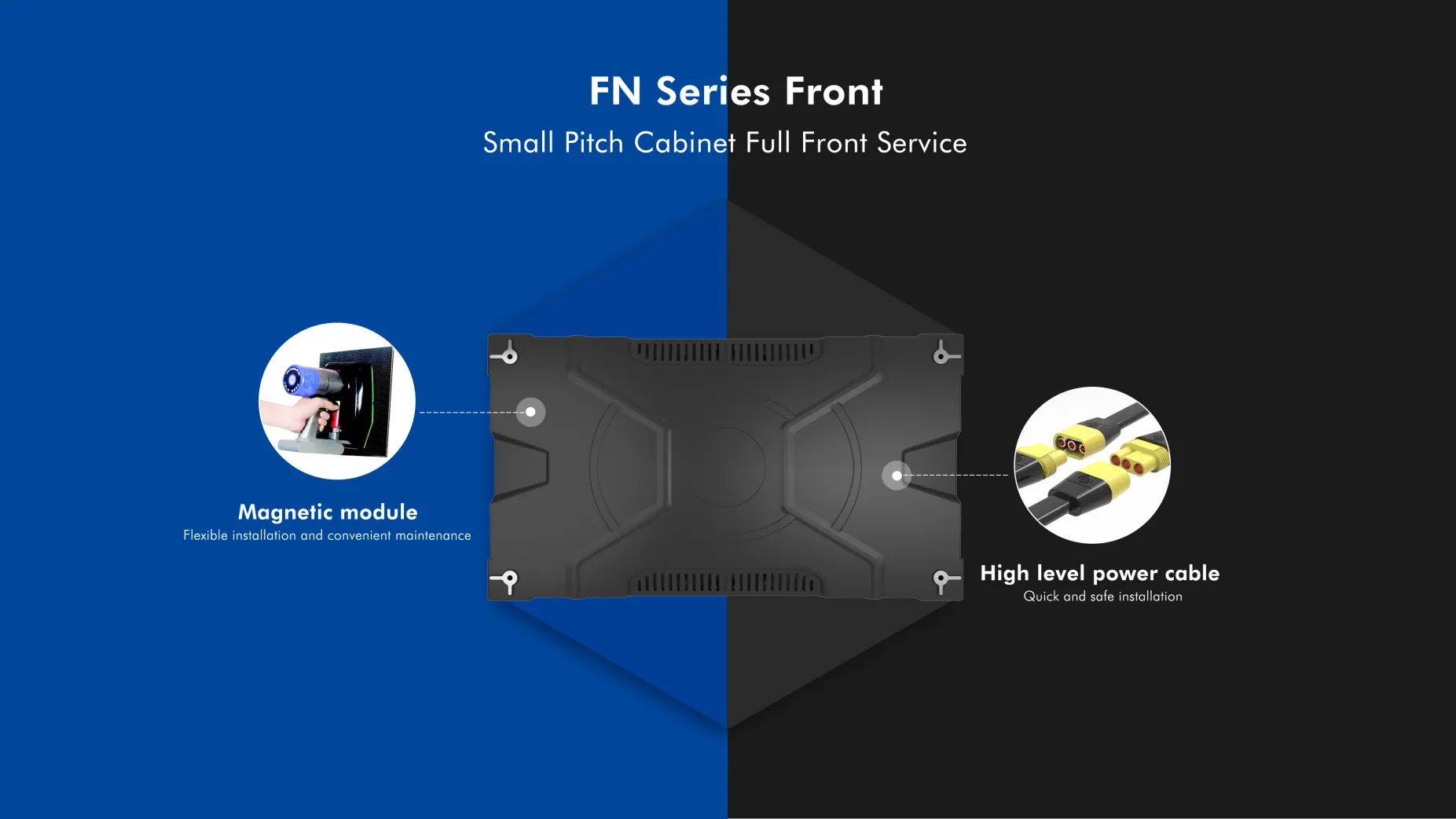

● Support fully front service

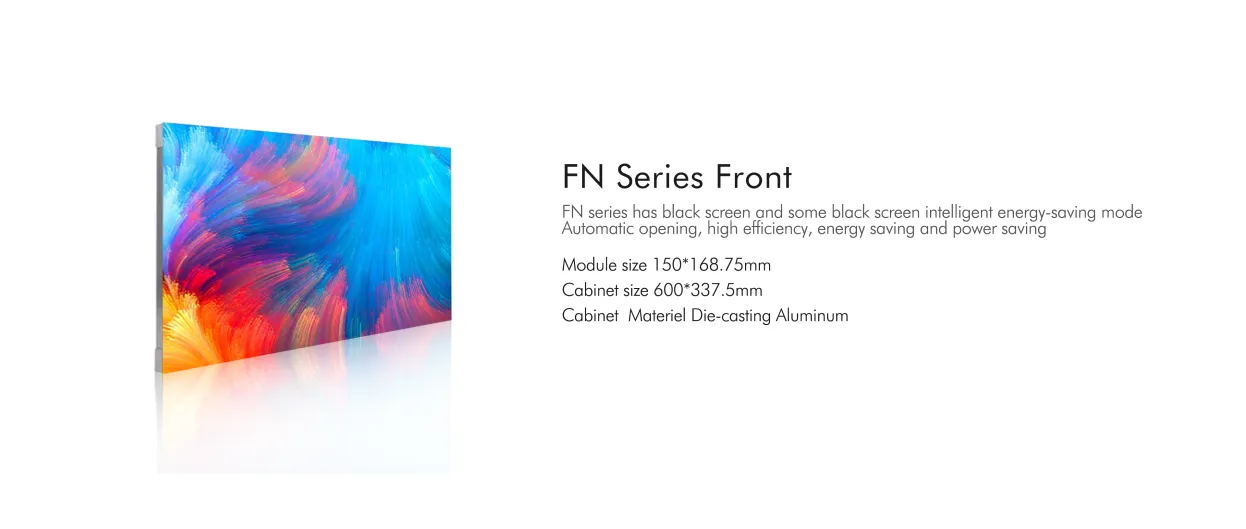

● 300mm*168.75mm size module

● 600mm*337.5mm size cabinet

● Different modules use same HUB

● ZHANXIN FN could make 2K 4K 8K Vision studio

Send Inquiry Now

Product Details
Specs

Basic Information

Year Established

--
Business Type

--
Country / Region

--
Main Industry

--
Main Products

--
Enterprise Legal Person

--
Total Employees

--
Annual Output Value

--
Export Market

--
Cooperated Customers

--

FN Series Small Pitch

Indoor
Pixel Pitch 0.93 1.25 1.56 1.87
LED lamp
Density 1137777dots/m2 640000dots/m2 409600dots/m2 284444dots/m2
Brightness 800nits 800nits 800nits 800nits
IP rating IP34 IP34 IP34 IP34
Cabinet Materiel Die-casting Aluminum
Scan
Module weight
Cabinet Weight 5kg 5kg 5kg 5kg
Module size 150168.75mm 150168.75mm 150168.75mm 150168.75mm
Cabinet size 600337.5mm 600337.5mm 600337.5mm 600337.5mm
Module pixel 160180dots 120135dots 96108dots 8090dots
Cabinet pixel 640360dots 480270dots 384216dots 320180dots
Max Power 450w/sqm 450w/sqm 450w/sqm 450w/sqm
Average Power 180w/sqm 225w/sqm 225w/sqm 225w/sqm
Viewing Angle
Control way
Brightness control
Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity
Work temperature

Fixed CylindricaL. pdf

Contact Us | ZHANXIN

If you are interested in our products for large commercial display solutions, please contact us.

Our team will give you the best service thanks so many.

Phone:

+8613944559527
Email:

sales03@zhanxinkj.com
Telephone:

+86-755-23007559
Fax:

+86-755-23007559
Website:

zhanxinkj.com/
Instagram:

ZHANXIN
YouTube:

ZHANXIN Led Display
Facebook:

ZHANXIN Led Display
WeChat:

ZHANXIN
WhatsApp:

86

Feel Free | Contact ZHANXIN

The first thing we do is meeting with our clients and talk through their goals on a future project.
During this meeting, feel free to communicate your ideas and ask lots of questions.

Recommended ｜ ZHANXIN

They are all manufactured according to the strictest international standards.

Our products have received favor from both domestic and foreign markets.
They are now widely exporting to 200 countries.

	Indoor
Pixel Pitch	0.93	1.25	1.56	1.87
LED lamp
Density	1137777dots/m2	640000dots/m2	409600dots/m2	284444dots/m2
Brightness	800nits	800nits	800nits	800nits
IP rating	IP34	IP34	IP34	IP34
Cabinet Materiel	Die-casting Aluminum
Scan
Module weight
Cabinet Weight	5kg	5kg	5kg	5kg
Module size	150*168.75mm	150*168.75mm	150*168.75mm	150*168.75mm
Cabinet size	600*337.5mm	600*337.5mm	600*337.5mm	600*337.5mm
Module pixel	160*180dots	120*135dots	96*108dots	80*90dots
Cabinet pixel	640*360dots	480*270dots	384*216dots	320*180dots
Max Power	450w/sqm	450w/sqm	450w/sqm	450w/sqm
Average Power	180w/sqm	225w/sqm	225w/sqm	225w/sqm
Viewing Angle
Control way
Brightness control
Operating system	AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity
Work temperature
