Outdoor Highlight Case
ZHANXIN outdoor FR series products, focusing on the use of high cost-effective outdoor projects, adopt CNC machining waterproof iron box design, outdoor display unit of traditional waterproof material, can be compatible with a wide range of needs from outdoor high-definition small spacing to outdoor high-brightness large screens, suitable for At present, the market demand for outdoor scenes and the characteristics of iron boxes make it easier to make different arc, spherical and other outdoor project requirements according to the needs of the project.
● High cost performance
● Special waterproof design : IP67
● Perfect screen flatness
● Support back service
● 320mm*100mm size module

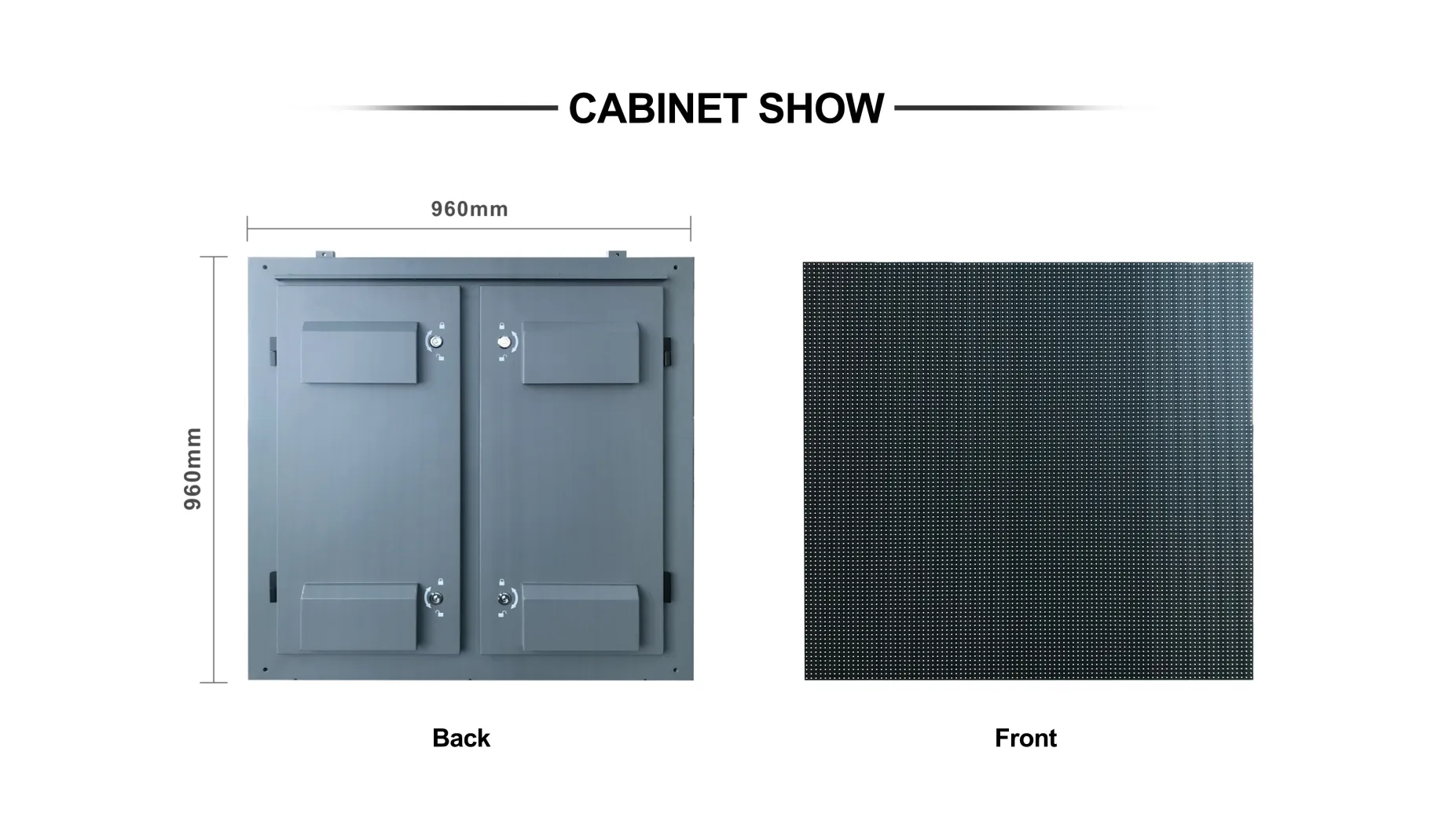

● Standard 960mm*960mm size cabinet
● Different modules use same cabinet
● Iron cabinet material, can be customized
| Outdoor | ||||||
| Pixel Pitch | P3.3 | P4 | P5 | P5.92 | P8 | P10 |
| LED lamp | SMD1921 | SMD2020 | SMD2727 | SMD2727 | SMD3535 | DIP346 |
| Density | 9018dots/m2 | 112896dots/m2 | 40000dots/m2 | 28476dots/m2 | 15625dots/m2 | 10000dots/m2 |
| Brightness | 1000nits | 6000-6500nits | 5500-6000nits | 5500-6000nits | 5000-5500nits | 7000-7500nits |
| IP rating | IP31 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Cabinet Materiel | Die-casting Aluminum | Die-casting Aluminum | ||||
| Scan | 24 scan | 1/10 scan | 1/8scan | 1/9scan | 1/5scan | 1/4 scan |
| Module weight | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg |
| Cabinet Weight | 27kg | 27kg | 27kg | 27kg | 27kg | 27kg |

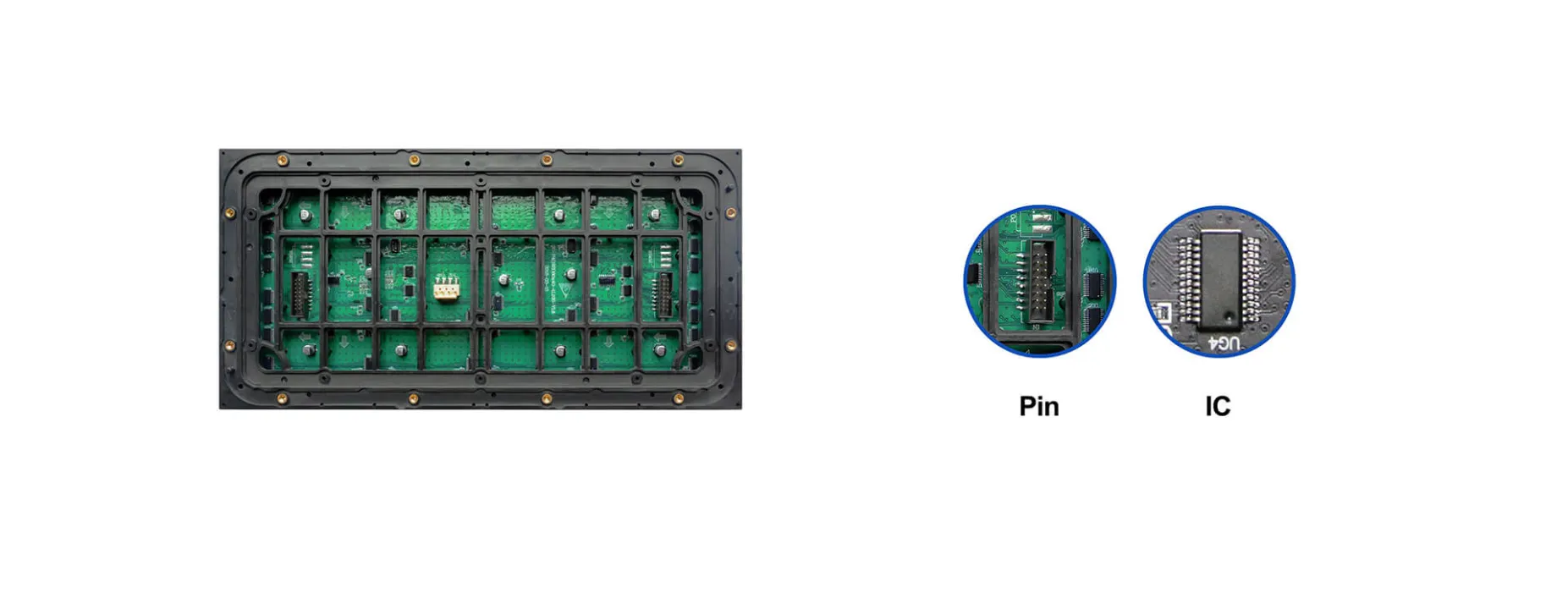

| Module size | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Cabinet size | 960*960mm | 960*960mm | 960*960mm | 960*960mm | 960*960mm | 960*960mm |
| Module pixel | 96*48dots | 80*40dots | 64*32dots | 54*27dots | 40*20dots | 32*16dots |
| Cabinet pixel | 192*192dots | 240*240dots | 192*192dots | 162*162dots | 120*120dots | 96*96dots |
| Max Power | 570w/sqm | 570w/sqm | 570w/sqm | 570w/sqm | 570w/sqm | 570w/sqm |
| Average Power | 150w/sqm | 150w/sqm | 150w/sqm | 150w/sqm | 150w/sqm | 150w/sqm |
| Viewing Angle | Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg | |||||
| Control way | synchronous/asynchronous | |||||
| Brightness control | 256 level | |||||
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | |||||
| Work humidity | 10% ~ 90% | |||||
| Work temperature | ﹣20 ~﹢50℃ | |||||
