Special-Shaped Case

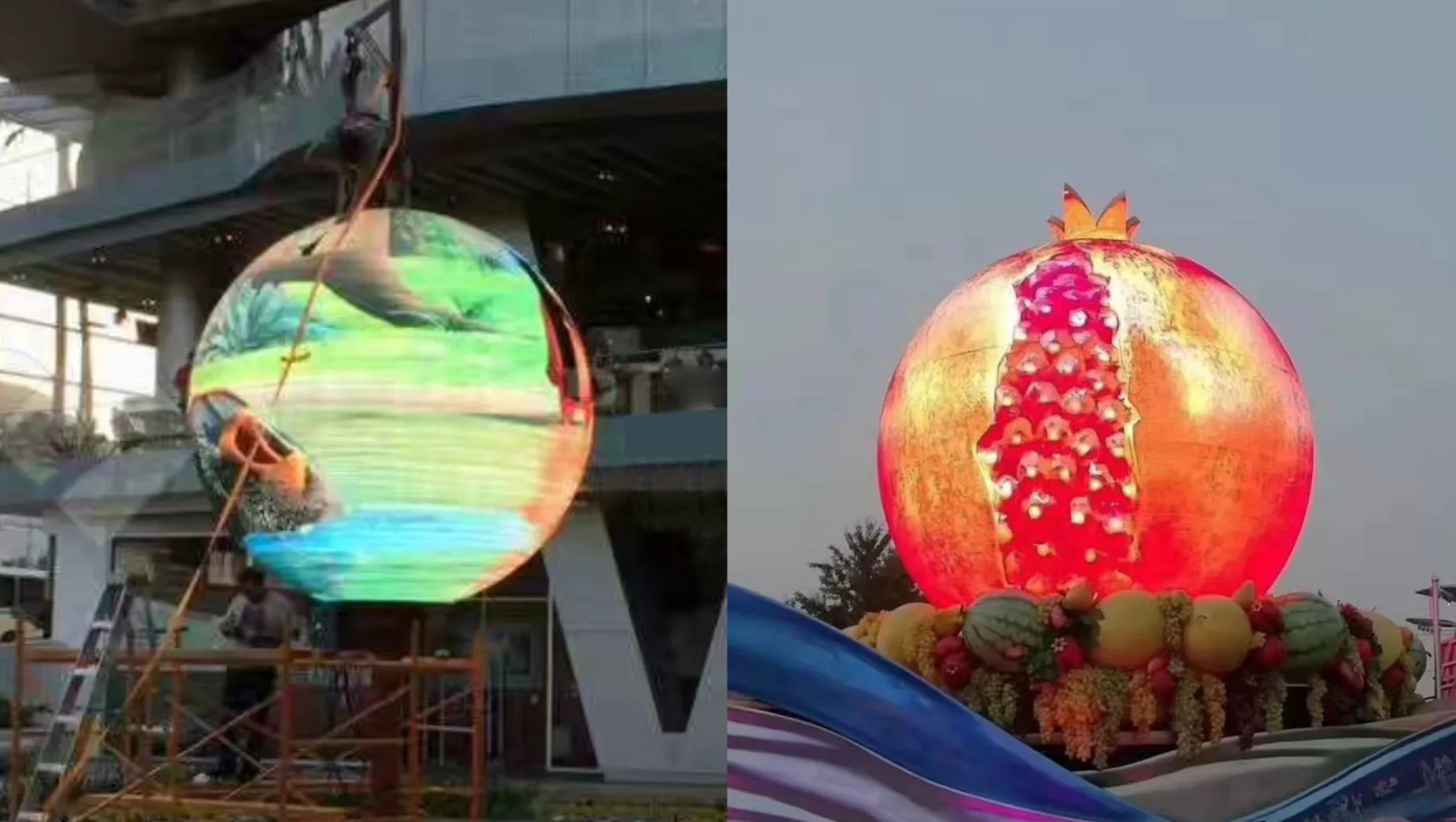

ZHANXIN team provides indoor ball screens and outdoor led display ball. The design structure can be determined according to the design requirements. It has a professional R&D and design team to make Enbon's spherical screens special. Starting from April 2022, ZHANXIN will make spot indoor balls in batches .
● Uniform tapping: Pixel to pixel image
● Seamless splicing between cabinets and modules
● Synchronous and asynchronous compatible
● Supporting offline and online model
● Maintenance : support rear and front service

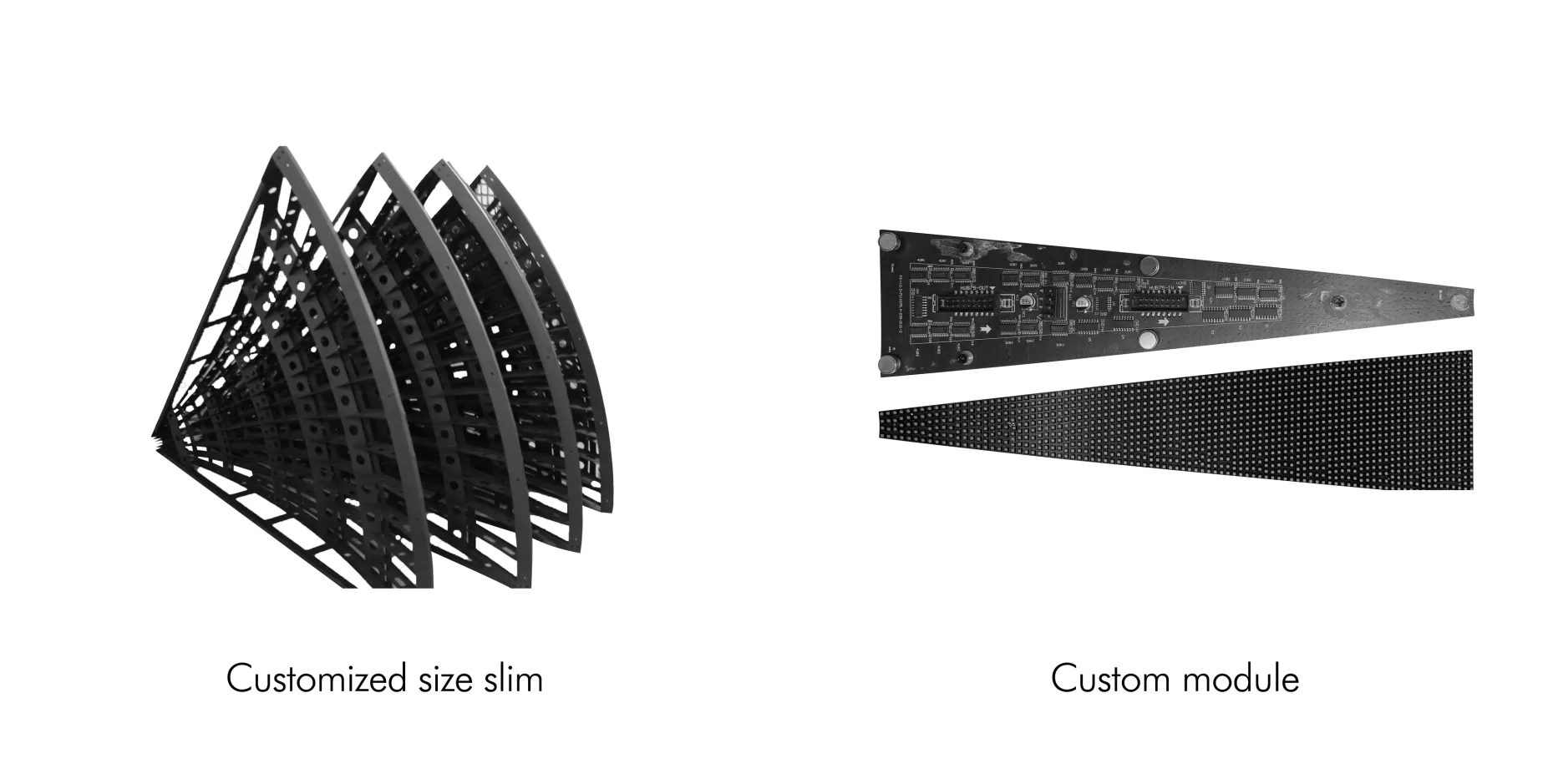

● Could make with different diameter design
● ZHANXIN team will support design，proudction，installation
| Item | Diameter 3m | Diameter 5m | Diameter 6m | Diameter 10m | Diameter 16m |
| Pixel pitch | 6mm | 8mm | 10mm | 16mm | 16mm |
| Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED package | SMD2727 | SMD2727 | SMD3535 | DIP346 | DIP346 |
| IC chip | 5124IC | 5124IC | 5124IC | 5124IC | 5124IC |
| Scan | 8s | 4s | 4s | Static | Static |
| Application | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Whole ball size | Diameter3m | Diameter5m | Diameter6m | Diameter10m | Diameter16m |
| Brightness | 5500cd | 5500cd | 5500cd | 6800cd | 6800cd |
| Resolution | 785000 | 1226000 | 1130000 | 1226000 | 3125000 |
| Area | 28.3m² | 78.5m² | 113m² | 315/m² | 800m² |
| Weight | 1400kg | 4000kg | 12000kg | 35000kg | 42000kg |
| Gray scale | 14bit | 14bit | 14bit | 14bit | 14bit |
| Input voltage (V) | AC110/220V | AC110/220V | AC110/220V | AC110/220V | AC110/220V |
| Input frequency | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ |
| Brightness adjustment level | Automatic or manual level | ||||
| Refresh rate | 1920 | ||||
| Color temperature | 3200K--9500K | ||||
| Working temp | ﹣20 ~﹢60℃ | ||||
| Working humidity | 10 ~﹢90℃ | ||||
| Lifetime | ≥100000 hours | ||||
