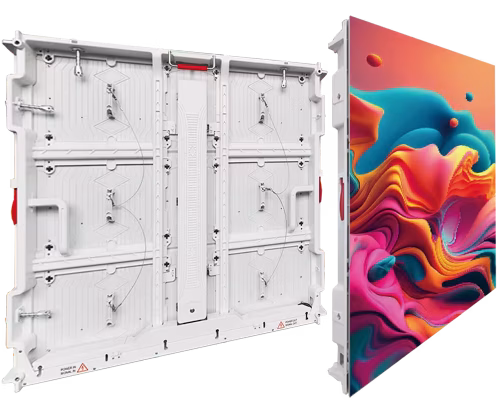

FC Series

The FC series features lightweight and thin aluminum module and cabinet structures, providing excellent heat dissipation, thereby enhancing the stability and lifespan of the LED screen.

The common cathode design reduces power consumption, achieving energy efficiency and environmental protection. With highly waterproof, dustproof, and corrosion-resistant characteristics, it can reliably operate under various harsh weather conditions.

1. High brightness
2. Corrosion resistance
3. Salt mist resistance
4. Moisture-proof and waterproof
5. Fireproof and flame-retardant
6. Excellent display

High Refresh Rate

Common Cathode

High Brightness

Fanless

IP66

Modular Design

Front and Rear Maintenance

Lightweight

Customized Solutions

P10

P3.33

P4.44

P5.7

P6.67

Key Features

Common Cathode Energy Saving

Compared to traditional LED displays, energy savings of over 40%.
Super Brightness

Brand Gold Wire Lamp, maximum brightness of 120,000 nits, fearless of direct sunlight outdoors.
Stadium Screen I

Integrated Rotating Bracket Design, Simple Installation, Convenient Transportation, High Brightness, Clear Picture.
Stadium Screen II

Mobile Double Bracket Support, Anti-collision Soft Mask, Dustproof and Waterproof, Safe and Reliable.
Easy Naked Eye 3D

Supports 90° Right-angle Joint and 90° Curved Joint.
Wall-mounted Installation

Supports wall-mounted installation, no need for steel structure, cost-saving.

Specifications


Model	FC3.33	FC4.44	FC5.7	FC6.67	FA8	FC10
Pixel Composition(SMD)	1415	1921	2727	2727	2727	2727
Pixel Density (dots/m²)	90000	50625	30625	22500	15625	10000
Module Size(mm)	48032014	48032014	48032015	48032016	48032016	48032018
Cabinet Size(mm)	96096084	96096084	96096085	96096086	96096086	96096088
Cabinet Material	Die-Cast Aluminum	Die-Cast Aluminum	Die-Cast Aluminum	Die-Cast Aluminum	Die-Cast Aluminum	Die-Cast Aluminum
Cabinet Weight(kg/cabinet)	25	25	25	25	25	25
IP Rating	IP66	IP66	IP66	IP66	IP66	IP66
White Balance Brightness(nits)	≥4500	≥5000	≥5500	≥5500	≥6000	≥6000
Color Processor(bit)	14	16	16	16	16	16
The Max Power Consumption(W/m²)	550	550	550	550	550	550
Average Power Consumption(W/m²)	186	186	186	186	186	186
IC Driving(s)	1/12	1/9	1/7	1/6	1/3	1/2
Refreshing Ratio(Hz)	≥3840	≥3840	≥3840	≥3840	≥3840	≥3840
Maintenance Method	Front/Rear	Front/Rear	Front/Rear	Front/Rear	Front/Rear	Front/Rear


Model	FC3.33	FC4.44	FC5.7	FC6.67	FA8	FC10
Pixel Composition(SMD)	1415	1921	2727	2727	2727	2727
Pixel Density (dots/m²)	90000	50625	30625	22500	15625	10000
Module Size(mm)	48032014	48032014	48032015	48032016	48032016	48032018
Cabinet Size(mm)	96096084	96096084	96096085	96096086	96096086	96096088
Cabinet Material	Die-Cast Aluminum	Die-Cast Aluminum	Die-Cast Aluminum	Die-Cast Aluminum	Die-Cast Aluminum	Die-Cast Aluminum
Cabinet Weight(kg/cabinet)	25	25	25	25	25	25
IP Rating	IP66	IP66	IP66	IP66	IP66	IP66
White Balance Brightness(nits)	≥4500	≥5000	≥5500	≥5500	≥6000	≥6000
Color Processor(bit)	14	16	16	16	16	16
The Max Power Consumption(W/m²)	550	550	550	550	550	550
Average Power Consumption(W/m²)	186	186	186	186	186	186
IC Driving(s)	1/12	1/9	1/7	1/6	1/3	1/2
Refreshing Ratio(Hz)	≥3840	≥3840	≥3840	≥3840	≥3840	≥3840
Maintenance Method	Front/Rear	Front/Rear	Front/Rear	Front/Rear	Front/Rear	Front/Rear
