Floor Screen
Floor Screen
Pixel Pitch: P3.91, P4.81, P6.25
Refresh Rate: 1920Hz-3840Hz
Cabinet Size: 500500mm / 5001000mm
Brightness: 5000nits
The Interactive stage dancing floor LED screen is a special design.
There are two types of the screen cabinet500500mm & 5001000mm. The cabinet could be made of die-cast aluminum or iron.
It’s ultra thin and ultra light. The thickness of the LED cabinet is 80mm, and the weight is only 7kg/13.5kg.

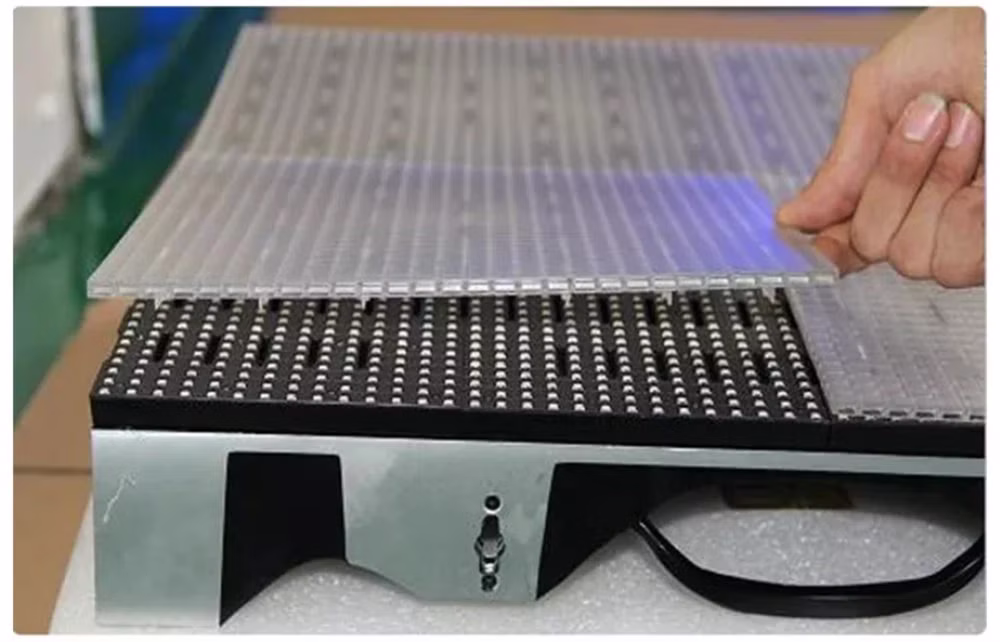

・Equipped with high-density alkaline PC mask on the surface, anti-slip and IP65 waterproof design, good for walking dancing and trampling.
・Seamlessly connect, height can also be adjustable.
・Sensors can detect movement and respond activity around the panel.
・Easy to display the videos and images by interactive software.
・It can bear up to 1.5 tons/sqm, durable and shock resistant.
Key Features
Thin and light
Use advanced gluing technology, with the sealing silicone rubber ring, perfect for dust proof and waterproof,
UV-resistant technology, even after years of sunlight, can still maintain the original color,
Without any screw holes, so it can be mopped and cleaned directly.

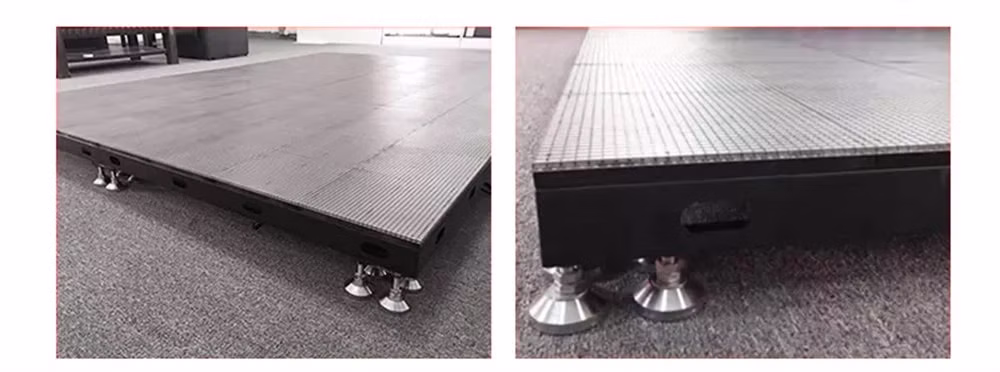

① The height of the foot is 95mm; the shortest is 55mm.
② The height from foot to screen is 150mm, can be adjusted (130-170mm).
③ The height of the screen is 75mm.
The height of the floor led screen can be adjusted by four nuts.
The stand makes the led screen without slipping when walk on it.
Strong and durable structure: 1.5-2.5 Tons heavy load.

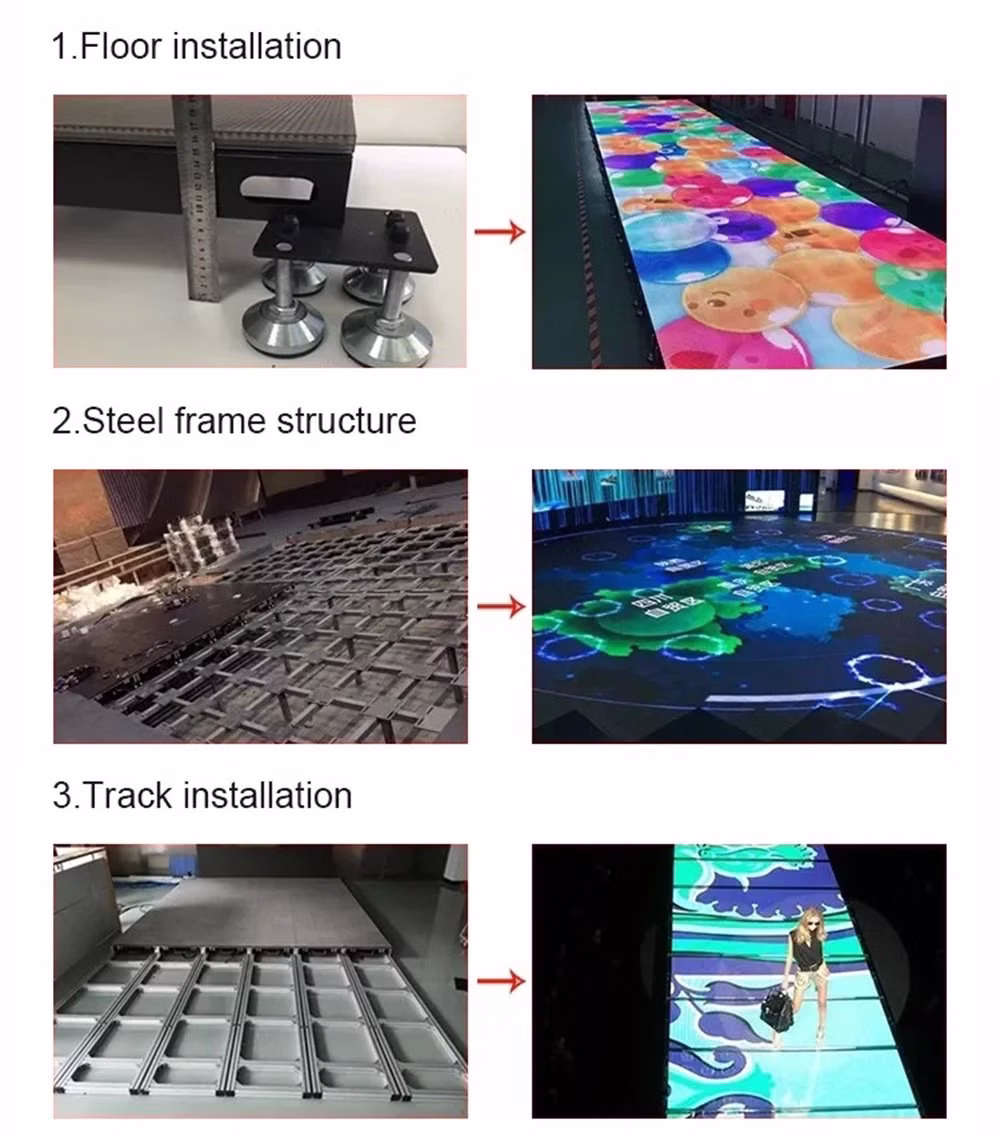

Installation Mode
1. Floor installation.
2. Steel frame structure.
3. Track installation.
Specifications
Download
