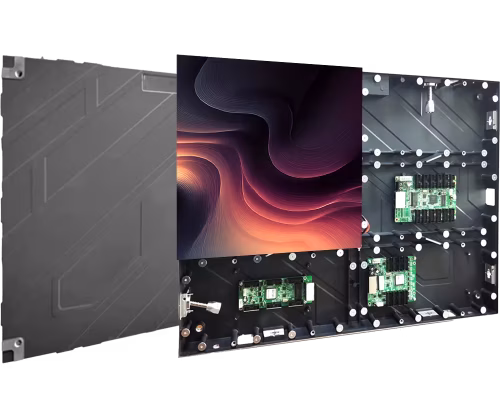

FS-Plus Series Small pitch Cabinet, with magnetic pre-maintenance, ultra-light, ultra-thin design, weight only 4.3KG, disassembly and maintenance only 20 seconds, IP level 30, high brightness, high contrast, 160 ° large viewing angle, Full front service indoor project solution, cost and function both perfect option.

・Easy maintaince and service
・FS-Plus with P1.2 P1.5 P1.6 P1.8 P2.0 P2.5
・Perfect screen flatness
・Support fully front service
・320mm160mm size module
・640mm480mm size cabinet
・Different modules use same magnetic cabinet
・Enbon FS-Plus will have the best cost advantage

资源 1
High Refresh Rate
资源 10
Lightweight
资源 9
High Brightness
资源 10
Fast Heat Dissipation
资源 6

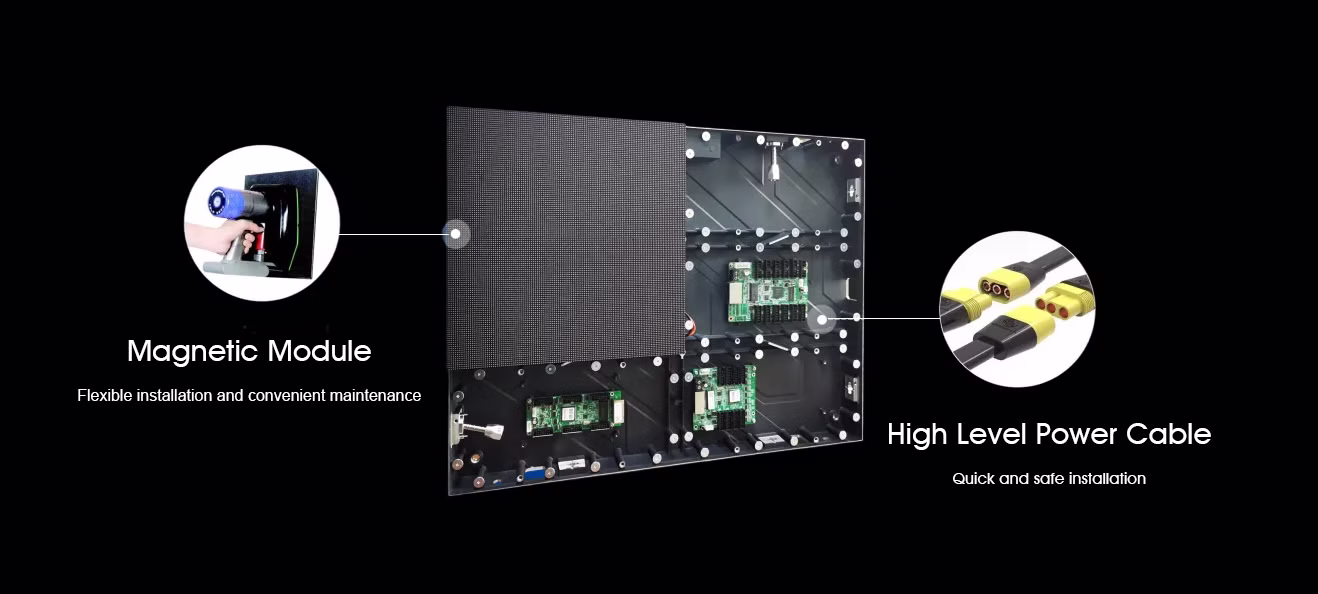

Magnetic Connection
资源15
Fireproof
资源 2
Never Black Screen
资源13
Convenient Maintenance
资源 11
Customized Solutions
P1.2
P1.6
P1.8
P2.0
P2.5

Key Features

Specifications

ItemIndoor
Pixel PitchP1.25P1.538P1.667P1.86P2.5
LED lampSMD1010SMD1212SMD1212/1515SMD1515SMD2020
Density(dots/m²)640000422500360000288906160000
Brightness≤500 nits≤600 nits≤600 nits≤600 nits≤750 nits
IP ratingIP45
Cabinet MaterialDie-cast Aluminum
Refresh Rate(Hz)3840
Scan64 scan52 scan48 scan43 scan32 scan
Module Weight0.3 kg
Cabinet Weight7.5 kg
Module Size(mm)320*160
Cabinet Size(mm)640*480*62
Module Pixel256*128 dots208*104 dots192*96 dots172*86 dots128*64 dots
Cabinet Pixel512*384 dots416*312 dots384*288 dots344*258 dots256*192 dots
Max Power550 w/sqm
Average Power185 w/sqm
Receiving CardNovastar MRV412
Maintenance MethodFront Maintenance
ConnectionSoft Connection/Hard Link
Viewing AngleHorizontal 140(+70/-70) deg Vertical 140(+70/-70) deg
Control waySynchronous/Asynchronous
Gray Scale13-16 bit
Operating SystemAV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work Humidity10% ~ 90%
Work Temperature﹣20 ~﹢65℃
ItemIndoor
Pixel PitchP1.25P1.538P1.667P1.86P2.5
LED lampSMD1010SMD1212SMD1212/1515SMD1515SMD2020
Density(dots/m²)640000422500360000288906160000
Brightness≤500 nits≤600 nits≤600 nits≤600 nits≤750 nits
IP ratingIP45
Cabinet MaterialDie-cast Aluminum
Refresh Rate(Hz)3840
Scan64 scan52 scan48 scan43 scan32 scan
Module Weight0.3 kg
Cabinet Weight7.5 kg
Module Size(mm)320*160
Cabinet Size(mm)640*480*62
Module Pixel256*128 dots208*104 dots192*96 dots172*86 dots128*64 dots
Cabinet Pixel512*384 dots416*312 dots384*288 dots344*258 dots256*192 dots
Max Power550 w/sqm
Average Power185 w/sqm
Receiving CardNovastar MRV412
Maintenance MethodFront Maintenance
ConnectionSoft Connection/Hard Link
Viewing AngleHorizontal 140(+70/-70) deg Vertical 140(+70/-70) deg
Control waySynchronous/Asynchronous
Gray Scale13-16 bit
Operating SystemAV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work Humidity10% ~ 90%
Work Temperature﹣20 ~﹢65℃
