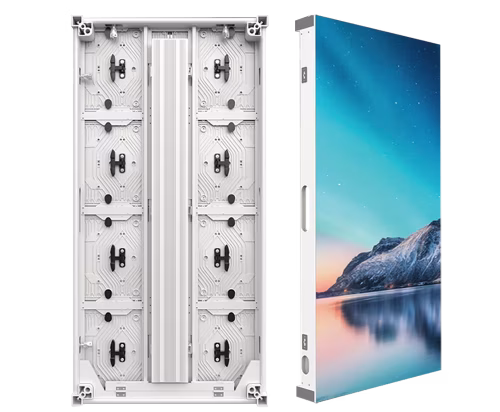

FS Series

The FS series features high definition and high brightness, ensuring clear and vivid displays for viewers even at close distances outdoors.

Its all-aluminum cabinet structure ensures wind resistance, waterproofing, and corrosion resistance, making it suitable for various harsh weather conditions. The modular design allows for convenient installation and maintenance. Suitable for outdoor scenarios such as billboards, commercial plazas, and bus stops.

资源 1
High Refresh Rate
资源 8
Common Cathode
资源 9
High Brightness
资源14
Fanless
资源 11
IP66
资源 8
Modular Design
资源 9

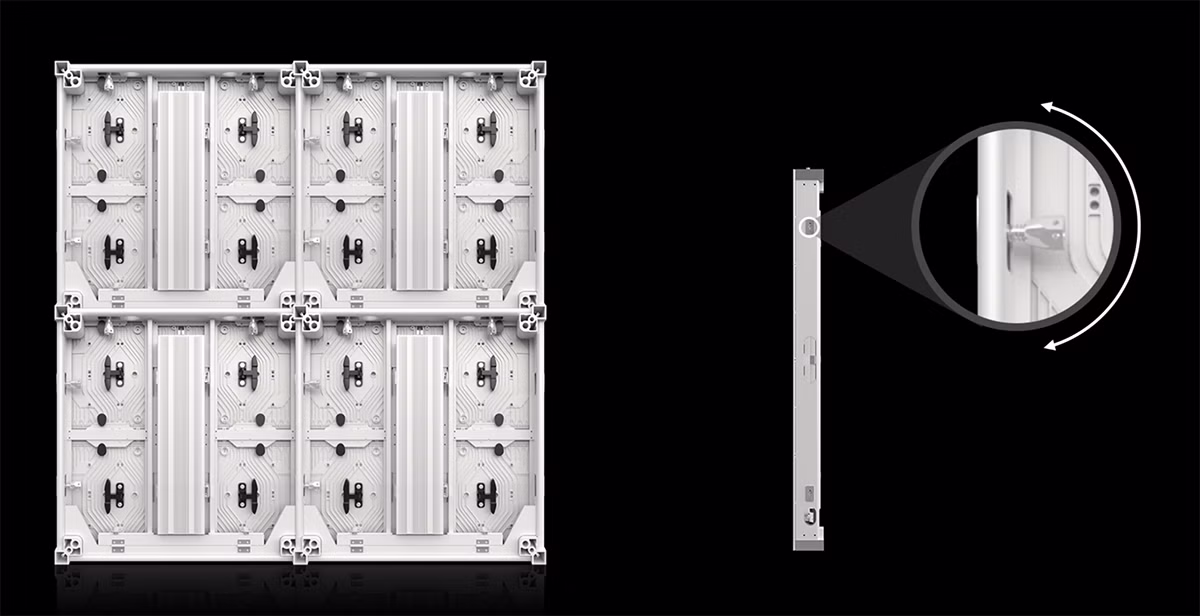

Front and Rear Maintenance
资源 10

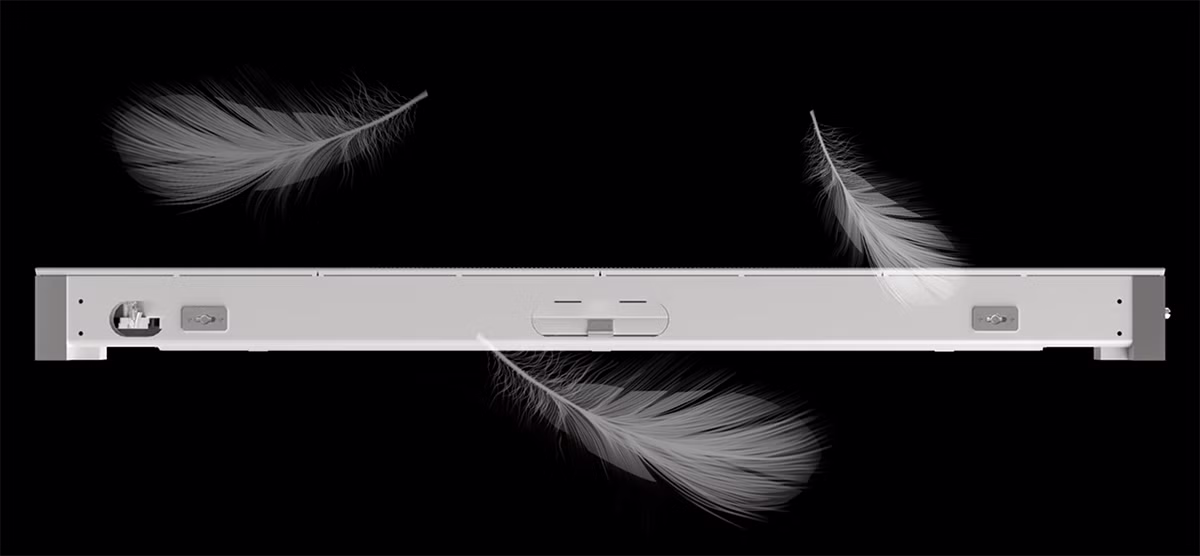

Lightweight
资源 7
Wall Mount
资源 11
Customized Solutions
P1.56
P1.95
P2.064
P2.97
P3.91

Key Features

Specifications

ModelFS1.56FS1.95FS2.604FS2.97FS3.91
Pixel Composition(SMD)11121415141514151415
Pixel Density (dots/m2)40960026214414745611289665536
Module Size(mm)250*250*19250*250*19250*250*19250*250*19250*250*19
Cabinet Size(mm)500*1000*84500*1000*84500*1000*84500*1000*84500*1000*84
Cabinet MaterialProfile AluminumProfile AluminumProfile AluminumProfile AluminumProfile Aluminum
Cabinet Weight(kg/cabinet)1616161616
IP RatingIP65IP65IP65IP65IP65
White Balance Brightness(nits)≥4500≥5000≥5000≥5000≥5000
Color Processor(bit)1414161616
The Max Power Consumption(W/m2)550550550550550
Average Power Consumption(W/m2)186186186186186
IC Driving(s)1/401/321/241/211/8
Refreshing Ratio(Hz)≥3840≥3840≥3840≥3840≥3840
Maintenance MethodFront/RearFront/RearFront/RearFront/RearFront/Rear
ModelFS1.56FS1.95FS2.604FS2.97FS3.91
Pixel Composition(SMD)11121415141514151415
Pixel Density (dots/m2)40960026214414745611289665536
Module Size(mm)250*250*19250*250*19250*250*19250*250*19250*250*19
Cabinet Size(mm)500*1000*84500*1000*84500*1000*84500*1000*84500*1000*84
Cabinet MaterialProfile AluminumProfile AluminumProfile AluminumProfile AluminumProfile Aluminum
Cabinet Weight(kg/cabinet)1616161616
IP RatingIP65IP65IP65IP65IP65
White Balance Brightness(nits)≥4500≥5000≥5000≥5000≥5000
Color Processor(bit)1414161616
The Max Power Consumption(W/m2)550550550550550
Average Power Consumption(W/m2)186186186186186
IC Driving(s)1/401/321/241/211/8
Refreshing Ratio(Hz)≥3840≥3840≥3840≥3840≥3840
Maintenance MethodFront/RearFront/RearFront/RearFront/RearFront/Rear
