K640 Series

K640 series
K640 series

K640 Series

3RD Generation Cabinet
Handy/Simple/Smart/High CP Value

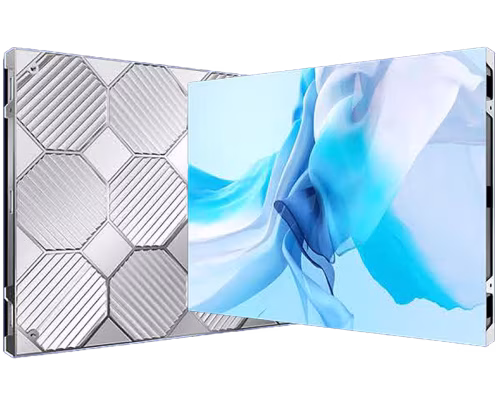

K-640 Series has the frame of honeycomb. The cabinet is made precisely through CNC machines, and is capable to keep firm in structure when under stress, and dissipate head quickly.

Inside the structure, all modules are mounted directly, cordlessly. It also allows redundancy system and PSU unit

Key Features

Specifications

ItemK1.25K1.53K1.86K2.5
Pixel pitch1.25mm1.53mm1.86mm2.5mm
Pixel density640000425000288906160000
Module size320*160mm
LED packageSMD1010SMD1212SMD1515SMD2020
Module resolution(pixels)256*128208*104172*86128*64
Module arrangement per cabinet2*3
Cabinet dimension640*480*48.5mm
Cabinet Weight (including module)7.5kg
Cabinet resolution (pixels)512*384416*312344*258256*192
MaintenanceFull front serivice
System backupsupport
White balance brightness500-600cn/m2
Pixel-level calibrationsupport
Color temperaature6500k(adjustable)
Refresh rate3840Hz
Viewing angle120-140(V/H)
Brightness Uniformity≥98.5%
Grayscale Level14-16bits
Contrast ratio5000:1
Scanning mode1/641/521/431/32
Working voltage(input)110-240V, 50/60Hz
Max./Avg. Power Consumption500W/m2/165-260w/m2
Storage temperature&humidity(RH)-10℃-60℃&35-75%
Working temperature&humidity(RH)-10℃-60℃&35-75%
IP RatingsIP5X
Screen temperature rise≤5℃
InstallationOn-wall/recessed/pedestal/suspended/stacked install
Signal outputHDMI/DVI/DP
CertificationRoHS/FCC/CE
ItemK1.25K1.53K1.86K2.5
Pixel pitch1.25mm1.53mm1.86mm2.5mm
Pixel density640000425000288906160000
Module size320*160mm
LED packageSMD1010SMD1212SMD1515SMD2020
Module resolution(pixels)256*128208*104172*86128*64
Module arrangement per cabinet2*3
Cabinet dimension640*480*48.5mm
Cabinet Weight (including module)7.5kg
Cabinet resolution (pixels)512*384416*312344*258256*192
MaintenanceFull front serivice
System backupsupport
White balance brightness500-600cn/m2
Pixel-level calibrationsupport
Color temperaature6500k(adjustable)
Refresh rate3840Hz
Viewing angle120-140(V/H)
Brightness Uniformity≥98.5%
Grayscale Level14-16bits
Contrast ratio5000:1
Scanning mode1/641/521/431/32
Working voltage(input)110-240V, 50/60Hz
Max./Avg. Power Consumption500W/m2/165-260w/m2
Storage temperature&humidity(RH)-10℃-60℃&35-75%
Working temperature&humidity(RH)-10℃-60℃&35-75%
IP RatingsIP5X
Screen temperature rise≤5℃
InstallationOn-wall/recessed/pedestal/suspended/stacked install
Signal outputHDMI/DVI/DP
CertificationRoHS/FCC/CE
