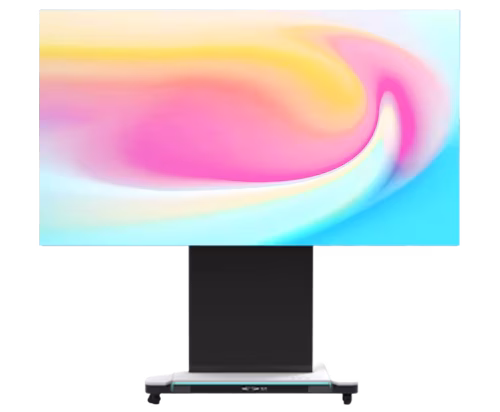

Liftable folding integrated display screen

All-in-One LED Elevating Rotating Folding Mobile Display in Flight Case
Flexible LED display, multi-axis drive mechanical design, mobile LED screen, foldable LED screen, elevating LED screen, commercial all-in-one design

Elevating Folding Unit: 135″
Safe Folding Gap: 0.1mm
Ultra-Thin Folding: 168mm
Bidirectional Folding: 180°
Vertical Lifting Capacity: 150kg

P1.53

Key Features

External Dimensions
Mobile Air Crate
Aviation case design
Integrates protective equipment with aviation cases into a unified structure, featuring a three-part hinged opening mechanism secured by butterfly latches.

Unrestricted Mobility
Equipped with mobile brake wheels at the base. Dimensions: L 2135 x W 1110 x H 2220 mm. Accommodates large screens for office entry without obstruction.

Convenient and Efficient
Simply open the outer cover, connect the power supply, and begin operation—highly efficient and convenient.
Designed for forklift transport and self-propelled movement via built-in wheels.

Specifications


Panel Size	135"
Display Area	3000mm*1687.5mm
Display Mode	16:09
Display Type	LED
Maximum Resolution	1960*1103
Pixel Pitch	1.53
Brightness (nits)	600 cd/m²
Contrast Ratio	1100:01:00
Viewing Angle (Up/Down/Left/Right)	89°/89°/89°/89°
Response Time	8ms
Refresh Rate	60Hz
Menu Language (Optional)	Chinese/English
Lifting Track	Aluminum Alloy + Carbon Steel
Lifting Height	0-900mm
Drive Method	Servo Electric Cylinder + Proprietary Rotating Hinge
Folding Angle	180 degrees
Motor and Driver	Servo
Sliding Screen Controller	Customizable
Limit Switch	Omron Limit Switch
Cable Management System	Cable Drag Chain + Proprietary Concealed Rotating Cable Guide
System Features	Seamless Android/Windows Dual-System Switching; 0.1mm Folding Gap; Mechanical System Alarm Reset; Supports Remote Control, Button, and App Control; Concealed Cable Routing; Commercial All-in-One Design
Power Supply	AC100V～240V，50/60Hz
Maximum Power Consumption	≦4500W
Standby Power Consumption	＜1W
Operating Temperature (°C)	0℃~50℃
Storage Temperature (°C)	-20℃~60℃


Panel Size	135"
Display Area	3000mm*1687.5mm
Display Mode	16:09
Display Type	LED
Maximum Resolution	1960*1103
Pixel Pitch	1.53
Brightness (nits)	600 cd/m²
Contrast Ratio	1100:01:00
Viewing Angle (Up/Down/Left/Right)	89°/89°/89°/89°
Response Time	8ms
Refresh Rate	60Hz
Menu Language (Optional)	Chinese/English
Lifting Track	Aluminum Alloy + Carbon Steel
Lifting Height	0-900mm
Drive Method	Servo Electric Cylinder + Proprietary Rotating Hinge
Folding Angle	180 degrees
Motor and Driver	Servo
Sliding Screen Controller	Customizable
Limit Switch	Omron Limit Switch
Cable Management System	Cable Drag Chain + Proprietary Concealed Rotating Cable Guide
System Features	Seamless Android/Windows Dual-System Switching; 0.1mm Folding Gap; Mechanical System Alarm Reset; Supports Remote Control, Button, and App Control; Concealed Cable Routing; Commercial All-in-One Design
Power Supply	AC100V～240V，50/60Hz
Maximum Power Consumption	≦4500W
Standby Power Consumption	＜1W
Operating Temperature (°C)	0℃~50℃
Storage Temperature (°C)	-20℃~60℃
