Mobile LED Display

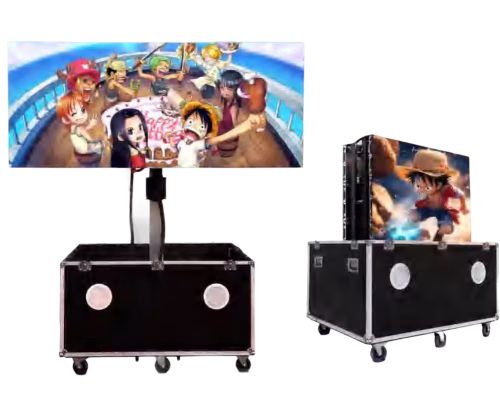

Portable Flight case led screen is a powerful, stable, and convenient mobile multimedia and outdoor advertising promotion new medium. Whether it is commercial exhibitions, outdoor activities, or entertainment performances, they can all bring excellent audio-visual experiences to users. Its customized heavy-duty hardware and portable design make it easier for users to build and showcase excellent audiovisual effects. Let’s enjoy the audio-visual feast brought by the portable aviation box LED display screen together!

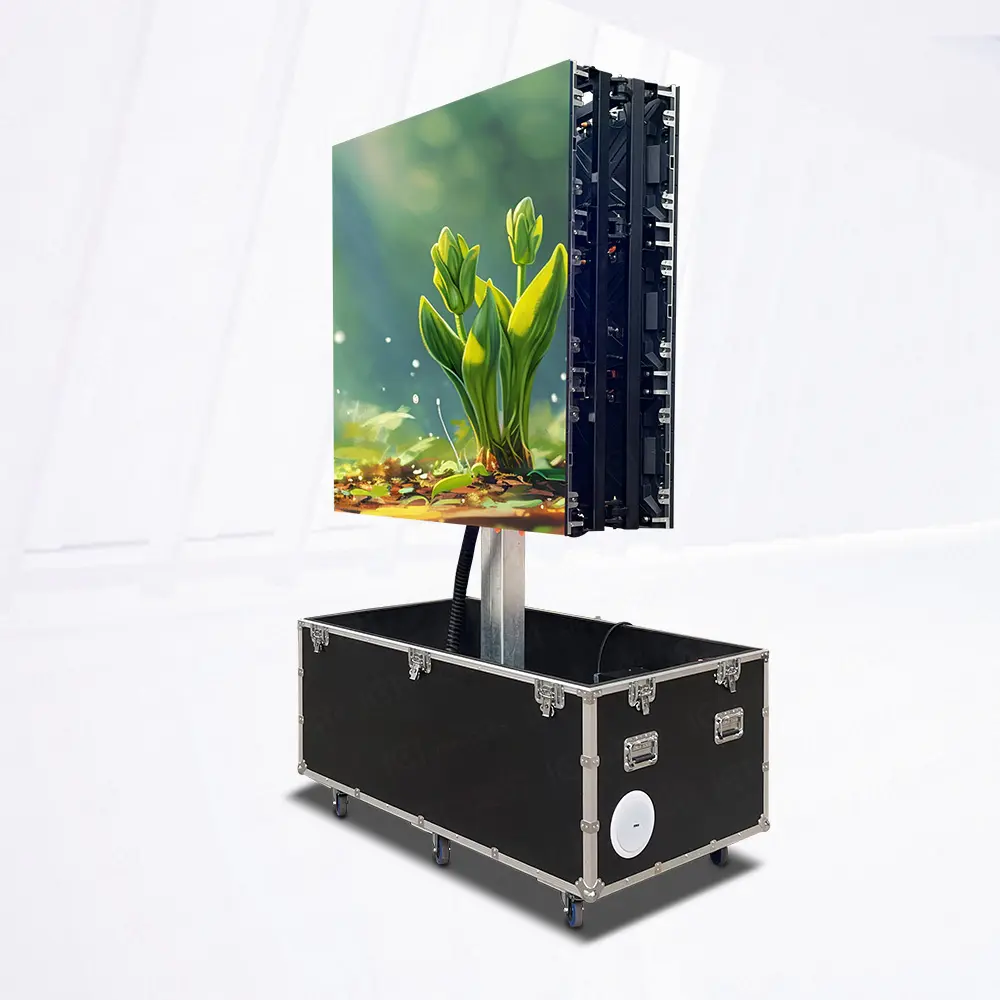

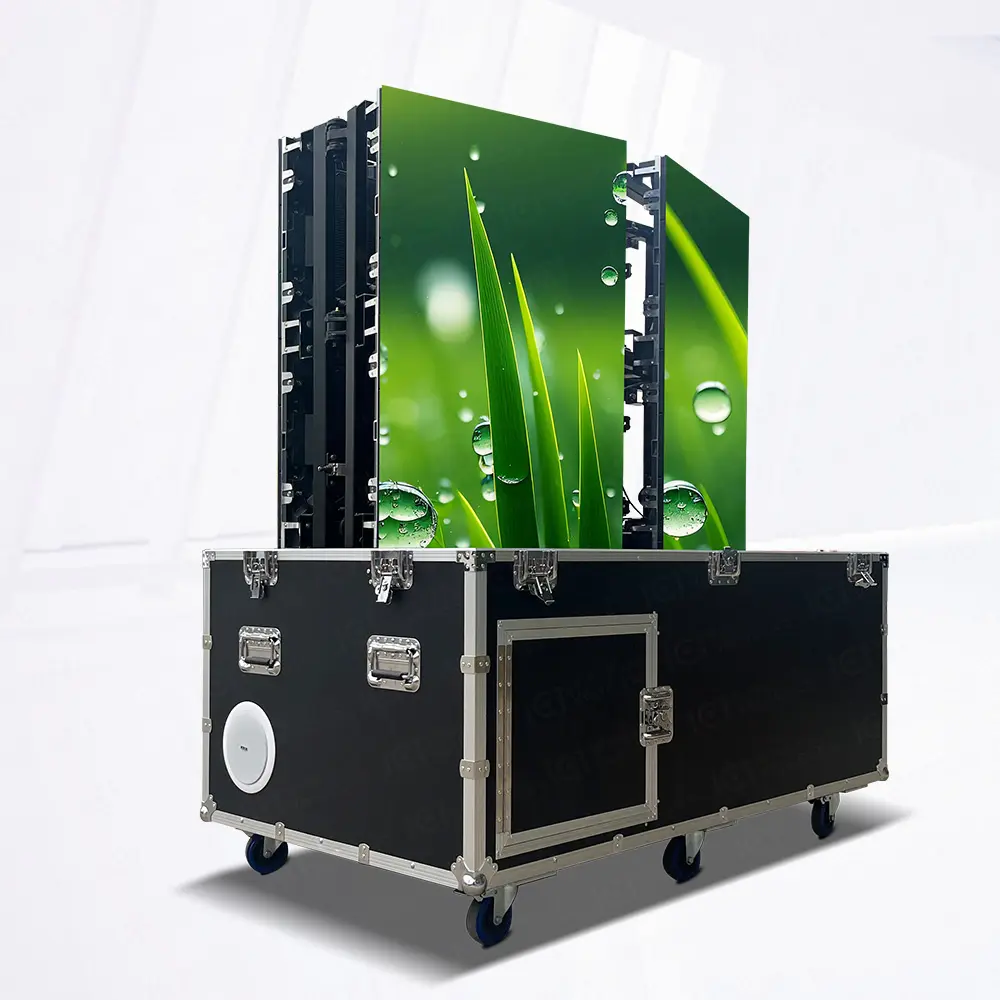

The LED screen adopts a P1.53 high-definition display screen, which can be raised and lowered, with a total height of up to 100 centimeters; The screen is divided into three parts. The two screens on the left and right sides are equipped with hydraulic folding systems. When needed, the two screens can be unfolded with just one button, forming a large screen of 2560 * 1440mm; These operations can be completed in just 35-50 seconds, allowing users to complete layout and display work more quickly.

Key Features

Specifications

Flight case appearance
Flight casesize1610×930×1870mmUniversal wheel500kg,7PCS
Total weight342KGFlight case parameter12mm plywood with black fireproof board
5mmEYA/30mmEVA
8 round draw hands
6 (4 "blue 36-width lemon wheel, diagonal brake)
15MM wheel plate
six locks
Fully open the cover
Install small pieces of galvanized iron plate at the bottom
LED Screen
Dimension2560mm*1440mmModule Size320mm(W)*160mm(H)
Light brandKinglightDot Pitch1.538 mm
Brightness1000cd/㎡Lifespan100,000hours
Average Power Consumption130w/㎡Max Power Consumption400w/㎡
Power SupplyE-energyDRIVE ICICN2153
Receiving cardNova MRV316Fresh rate3840
Cabinet materialDie casting aluminumCabinet weightaluminum 9kg
Maintenance modeRear servicePixel structure1R1G1B
LED packaging methodSMD1212Operating VoltageDC5V
Module power18Wscanning method  1/52
HUBHUB75Pixel density422500 Dots/㎡
Module resolution208*104DotsFrame rate/ Grayscale, color60Hz,13bit
Viewing angle, screen flatness, module  clearanceH:120°V:120°、<0.5mm、<0.5mmOperating temperature-20~50℃
system supportWindows XP,WIN 7,
Power parameter (external prower supply)
Input voltageSingle phase 120VOutput voltage120V
Inrush current15A
Control system
receiving card2pcsNOVA TB501 pcs
Hydraulic lifting
Lifting1000mm
Flight case appearance
Flight casesize1610×930×1870mmUniversal wheel500kg,7PCS
Total weight342KGFlight case parameter12mm plywood with black fireproof board
5mmEYA/30mmEVA
8 round draw hands
6 (4 "blue 36-width lemon wheel, diagonal brake)
15MM wheel plate
six locks
Fully open the cover
Install small pieces of galvanized iron plate at the bottom
LED Screen
Dimension2560mm*1440mmModule Size320mm(W)*160mm(H)
Light brandKinglightDot Pitch1.538 mm
Brightness1000cd/㎡Lifespan100,000hours
Average Power Consumption130w/㎡Max Power Consumption400w/㎡
Power SupplyE-energyDRIVE ICICN2153
Receiving cardNova MRV316Fresh rate3840
Cabinet materialDie casting aluminumCabinet weightaluminum 9kg
Maintenance modeRear servicePixel structure1R1G1B
LED packaging methodSMD1212Operating VoltageDC5V
Module power18Wscanning method  1/52
HUBHUB75Pixel density422500 Dots/㎡
Module resolution208*104DotsFrame rate/ Grayscale, color60Hz,13bit
Viewing angle, screen flatness, module  clearanceH:120°V:120°、<0.5mm、<0.5mmOperating temperature-20~50℃
system supportWindows XP,WIN 7,
Power parameter (external prower supply)
Input voltageSingle phase 120VOutput voltage120V
Inrush current15A
Control system
receiving card2pcsNOVA TB501 pcs
Hydraulic lifting
Lifting1000mm
