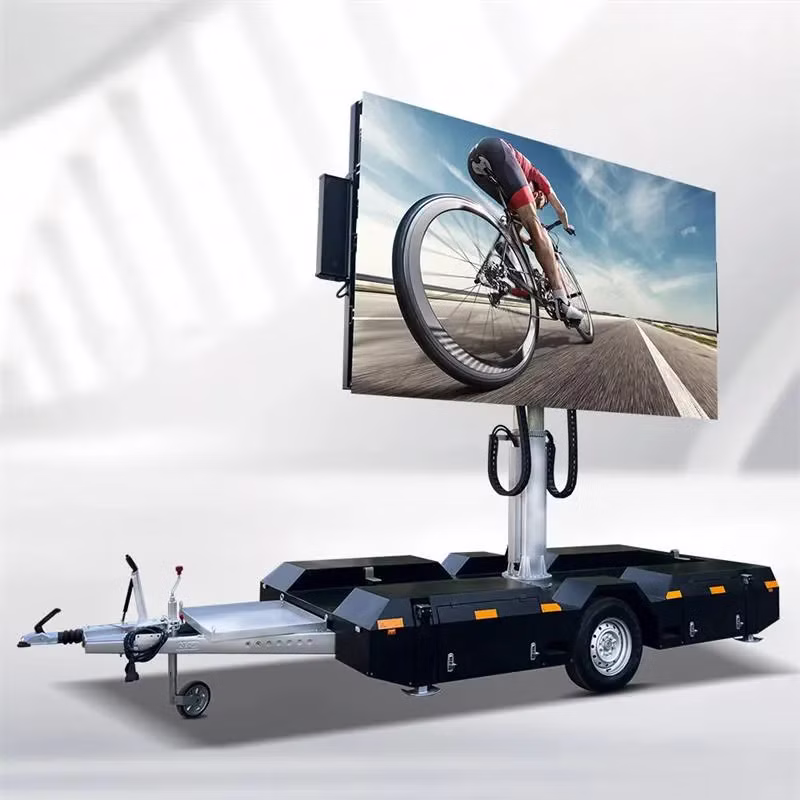

Mobile led trailer 02

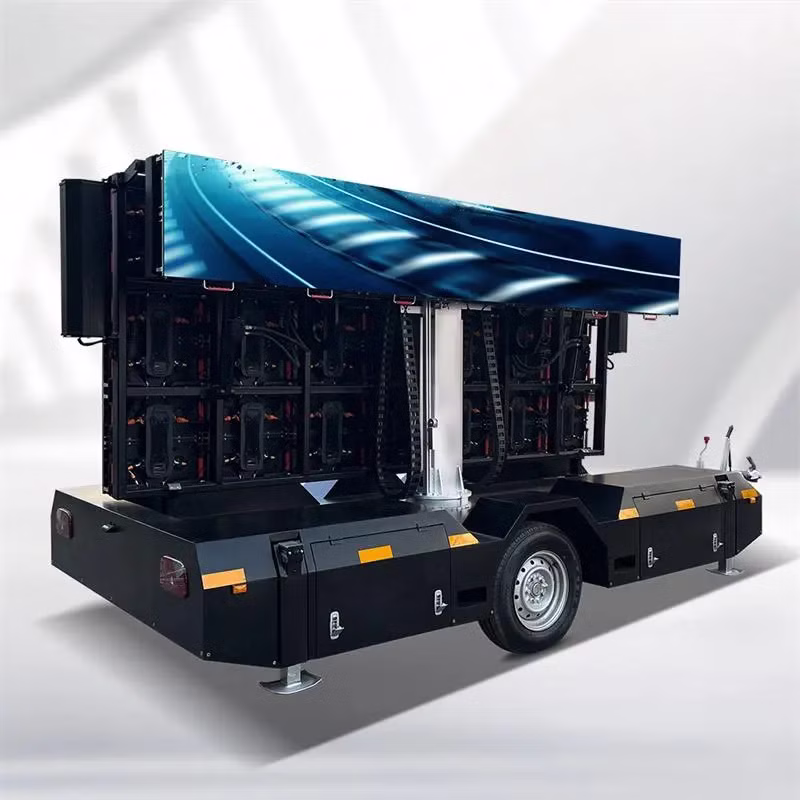

Mobile led trailer 03
Mobile led trailer
Mobile led trailer 02
Mobile led trailer 03

Mobile LED trailer

Mobile LED trailer launched by Zhanxin will be well received by customers at home and abroad once it is launched! This LED propaganda trailer combines the advantages of many products of Zhanxin.

The chassis is enlarged and widened on the basis of the same series of products, so that the LED screen frame body is more stable, and it can also be guaranteed to stay still in the bad weather of strong wind and rain. At the same time, the screen size has also been upgraded, using a high-definition outdoor waterproof LED screen, the screen area has also been increased to 3840*2240mm, and the scientific and reasonable proportion configuration is in line with people’s visual habits.

Key Features

Specifications

Trailer appearance
Total weight1500kgDimension5070mmx1900mmx2042mm
Max speed120Km/hAxleLoad weight 1800KG
BreakingHand brake
LED Screen
Dimension4000mm*2000mmModule Size250mm(W)*250mm(H)
Light brandkinglightDot Pitch3.9 mm
Brightness5000cd/㎡Lifespan100,000hours
Average Power Consumption230w/㎡Max Power Consumption680w/㎡
Power SupplyG-energyDRIVE ICICN2153
Receiving cardNova MRV316Fresh rate3840
Cabinet materialDie casting aluminumCabinet weightaluminum 7.5kg
Maintenance modeFront and after maintenancePixel structure1R1G1B
LED packaging methodSMD1921Operating VoltageDC5V
Module power18Wscanning method 1/8
HUBHUB75Pixel density65410 Dots/㎡
Module resolution64*64DotsFrame rate/ Grayscale, color60Hz,13bit
Viewing angle, screen flatness, module  clearanceH:120°V:120°、
<0.5mm、<0.5mm
Operating temperature-20~50℃
system supportWindows XP,WIN 7,
Power parameter
Input voltageSingle phase 220VOutput voltage220V
Inrush current28AAverage power consumption230wh/㎡
Player System
PlayerNOVAModleTB50-4G
Luminance sensorNOVA
Sound System
Power amplifierUnilateral power output:250WSpeakerMax power consumption:50W*2
Hydraulic System
Wind-proof levelLevel 8Supporting legs4 pcs
Hydraulic lifting:1300mmFold LED screen500mm
Trailer appearance
Total weight1500kgDimension5070mmx1900mmx2042mm
Max speed120Km/hAxleLoad weight 1800KG
BreakingHand brake
LED Screen
Dimension4000mm*2000mmModule Size250mm(W)*250mm(H)
Light brandkinglightDot Pitch3.9 mm
Brightness5000cd/㎡Lifespan100,000hours
Average Power Consumption230w/㎡Max Power Consumption680w/㎡
Power SupplyG-energyDRIVE ICICN2153
Receiving cardNova MRV316Fresh rate3840
Cabinet materialDie casting aluminumCabinet weightaluminum 7.5kg
Maintenance modeFront and after maintenancePixel structure1R1G1B
LED packaging methodSMD1921Operating VoltageDC5V
Module power18Wscanning method 1/8
HUBHUB75Pixel density65410 Dots/㎡
Module resolution64*64DotsFrame rate/ Grayscale, color60Hz,13bit
Viewing angle, screen flatness, module  clearanceH:120°V:120°、
<0.5mm、<0.5mm
Operating temperature-20~50℃
system supportWindows XP,WIN 7,
Power parameter
Input voltageSingle phase 220VOutput voltage220V
Inrush current28AAverage power consumption230wh/㎡
Player System
PlayerNOVAModleTB50-4G
Luminance sensorNOVA
Sound System
Power amplifierUnilateral power output:250WSpeakerMax power consumption:50W*2
Hydraulic System
Wind-proof levelLevel 8Supporting legs4 pcs
Hydraulic lifting:1300mmFold LED screen500mm
