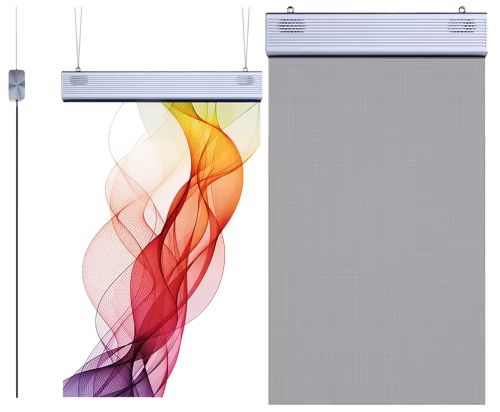

P Series

P series

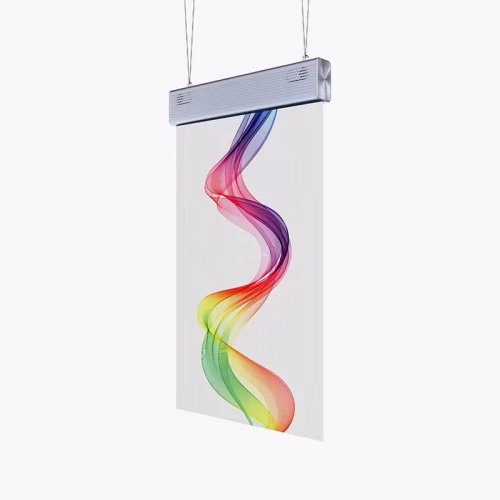

P series 03

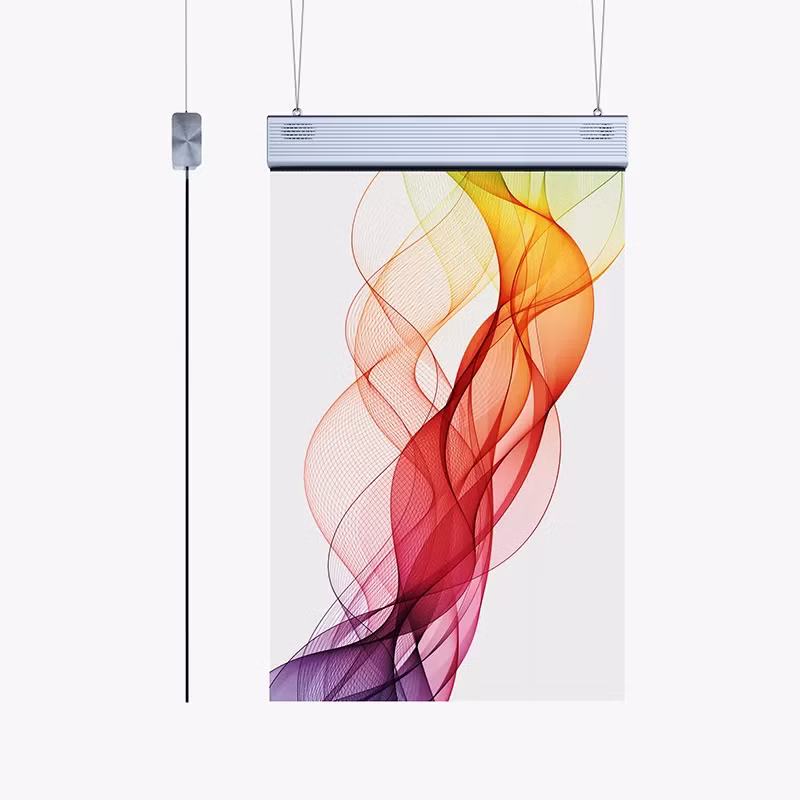

P series 02
P series
P series 03
P series 02

P Series

Standard all-in-one machine
Built-in sending card, only one power supply cable, plug in and play.

Minimal installation and maintenance
Standard hanging structure, easy installation, widely applied in different kinds of installation environment.

Free combined size
55″, 70″, 100″, 135″, to satisfy different display requirements.

Transparent and invisible whole screen
Whole screen transparent and invisible, it does not block any view and light.

Floating image
Display effect of 3D holographic and bare-eye AR visual effect, eye-catching and attractive.

High-resolution display quality
Horizontal and vertical pixels equal spacing, Light/Driver Integrated, Picture Grayscale 16 bit.

P2.5
P3.91
P6.25

Key Features

Specifications

ModelP2-P3-P6-
Screen Dimension(inch)908070559080705590807055
Display Dimension(mm) (w*h)2000*11751750*10001000*1475750*11752000*11721750*10001000*1469750*11722000*11751750*10001000*1475750*1175
Resolution (dot) (w*h)800*470700*400400*590300*470512*300448*256256*376192*300320*188280*160160*236120*188
Profile Dimension (mm)(w*h)2016*1292*781766*1117*781016*1592*78766*1294*782016*1292*781766*1117*781016*1592*78766*1291.5*782016*1292*781766*1117*781016*1592*78766*1291.5*78
LED Specification151521212121
Pixel Pitch (mm)(horizontal/ vertical)2.5-2.53.91-3.916.25-6.25
Pixel Density (dot/m²)1600006553625560
Transparency Rate85%92%95%
Brightness(cd/m²)≥1200(Black Light)≥3000（Black Light）≥4500（White Light）≥4500（White Light）
Maximum Power Consumption (w/m²)865865865
Average Power Consumption (w/m²)350330330
Color Temperature(K)3000~100003000~100003000~10000
Scanning ModeStatic Driving (Single Pixel Single Control)Static Driving (Single Pixel Single Control)Static Driving (Single Pixel Single Control)
Frame Rate（Hz）60~12060~12060~120
Encapsulation TypeLight Board & Driving  Board Integrated Light Board & Driving  Board Integrated Light Board & Driving  Board Integrated
Lifespan≥ 100,000.00 hours≥ 100,000.00 hours≥ 100,000.00 hours
Pixel Configuration16bit16bit16bit
Input VoltageAC100~240V 50/60HzAC100~240V 50/60HzAC100~240V 50/60Hz
Working Voltage for ModuleDC4.2V ±0.2VDC4.2V ±0.2VDC4.2V ±0.2V
Working TemperatureTemperature   -20℃ ~50℃ Temperature   -20℃ ~50℃ Temperature   -20℃ ~50℃
Working  HumidityHumidity 20%RH ~ 85%RH (Without Condensation)Humidity 20%RH ~ 85%RH (Without Condensation)Humidity 20%RH ~ 85%RH (Without Condensation)
Storage TemperatureTemperature  -20℃ ~60℃ Temperature  -20℃ ~60℃ Temperature  -20℃ ~60℃
Storage HumidityHumidity 10%RH ~ 85%RH (Without Condensation)Humidity 10%RH ~ 85%RH (Without Condensation)Humidity 10%RH ~ 85%RH (Without Condensation)
Protection DegreeIP20IP20IP20
Installation MethodHanging UpHanging UpHanging Up
Installation EnvironmentIndoorIndoorIndoor
Packing WayPearl Cotton+Carton/Flight CasePearl Cotton+Carton/Flight CasePearl Cotton+Carton/Flight Case
Statement: The relevant parameters in the table are subject to real-time update, and the data is for reference only. Upgrade will be made without further notice.
