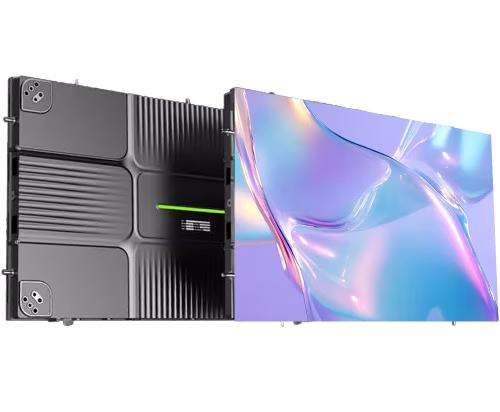

S360 series
S360 series

S360 Series

S360 Series covers pixels of 0.7mm, 0.9mm, 1.2mm, 1.5mm, to provide 4k/8k video quality.

S360 Series is consisted of modular, independent parts, and LED modules and PSU are connected cordlessly through the HUB Board, therefore ensuring screen flatness to a great extent.

・Long lifespan
・Screen surface flatness
・High IP rating
・Performance optimization
・Modular DesignLightweight
・Tangibility
・Smoothness
・Redundancy system

资源 1
High Refresh Rate
资源 10
Lightweight
资源 6
Magnetic Connection
资源 2
High Brightness
资源 10
Fast Heat Dissipation
资源 11
IP5X
资源 8
Modular Desig
资源 7
Wall Mount
资源 9
Rear Maintenance
资源 11
Customized Solutions
0.78
P0.93
P1.25
P1.56

Key Features

Specifications

ItemS0.78S0.93S1.25S1.56
Pixel pitch0.78mm0.93mm1.25mm1.56mm
Pixel density16384001137778640000409600
Module size150*168.75mm
LED packageFlip-chip COBFlip-chip COBFlip-chip COBFlip-chip COB
Module resolution(pixels)192*216160*180120*13596*108
Module arrangement per cabinet4*2
Cabinet dimension600*337.5*30mm
Cabinet Weight (including module)5.1kg
Cabinet resolution (pixels)768*432640*360480*270384*216
MaintenanceFull front serivice
System backupsupport
White balance brightness600-800cn/m2
Pixel-level calibrationsupport
Color temperaature6500k(adjustable)
Refresh rate3840Hz
Viewing angle160˚(V/H)
Brightness Uniformity≥99%
Grayscale Level16bits
Contrast ratio8000:1
Scanning mode1/541/601/451/54
Working voltage(input)110-240V, 50/60Hz
Max./Avg. Power Consumption500W/m2/165-260W/m2
Storage temperature&humidity(RH)-10℃-60℃&35-75%
Working temperature&humidity(RH)-10℃-60℃&35-75%
IP RatingsIP5X
Screen temperature rise≤5℃
InstallationOn-wall/recessed/pedestal/suspended/stacked install
Signal outputHDMI/DVI/DP
CertificationRoHS/FCC/CE
ItemS0.78S0.93S1.25S1.56
Pixel pitch0.78mm0.93mm1.25mm1.56mm
Pixel density16384001137778640000409600
Module size150*168.75mm
LED packageFlip-chip COBFlip-chip COBFlip-chip COBFlip-chip COB
Module resolution(pixels)192*216160*180120*13596*108
Module arrangement per cabinet4*2
Cabinet dimension600*337.5*30mm
Cabinet Weight (including module)5.1kg
Cabinet resolution (pixels)768*432640*360480*270384*216
MaintenanceFull front serivice
System backupsupport
White balance brightness600-800cn/m2
Pixel-level calibrationsupport
Color temperaature6500k(adjustable)
Refresh rate3840Hz
Viewing angle160˚(V/H)
Brightness Uniformity≥99%
Grayscale Level16bits
Contrast ratio8000:1
Scanning mode1/541/601/451/54
Working voltage(input)110-240V, 50/60Hz
Max./Avg. Power Consumption500W/m2/165-260W/m2
Storage temperature&humidity(RH)-10℃-60℃&35-75%
Working temperature&humidity(RH)-10℃-60℃&35-75%
IP RatingsIP5X
Screen temperature rise≤5℃
InstallationOn-wall/recessed/pedestal/suspended/stacked install
Signal outputHDMI/DVI/DP
CertificationRoHS/FCC/CE
