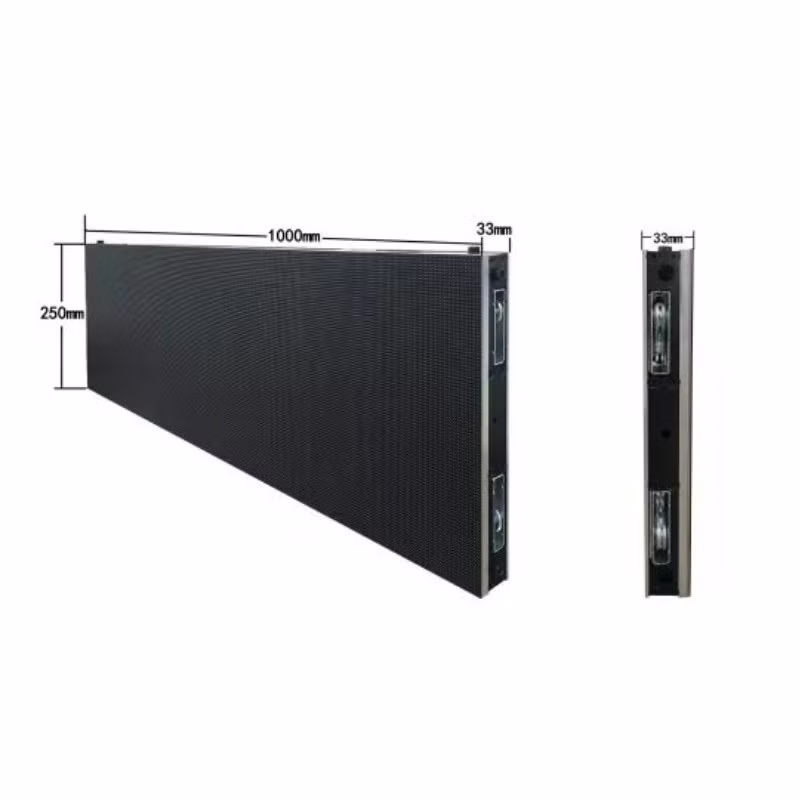

1000x250mm Hard Links LED Screen Front Maintenance
Indoor pre Maintenance 250×250 SMD 31N1 LED Module

Aluminum frame
High precision and high strength
Good heat dissipation effect
LED screen thickness: 33mm

Quick and simple maintenance
It only takes 10 seconds to replace the module.
Quick replacement and maintenance, improve cost-effectiveness.

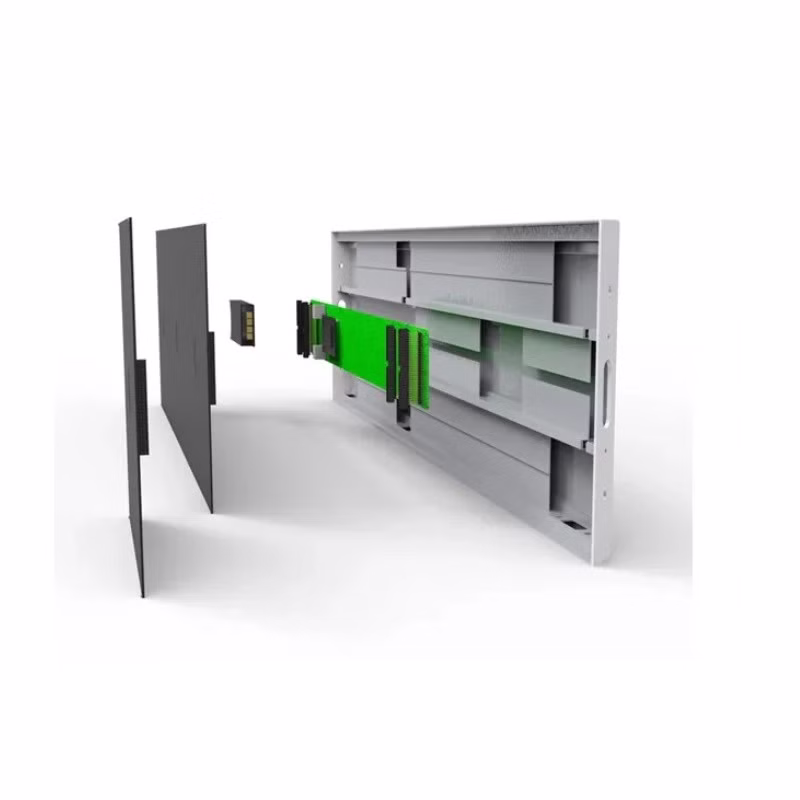

Hot-swap
The wireless connection module adopts hub connection, and the signal transmission is safer.
Hot-swap technology is the key to achieve continuous operation and uninterrupted maintenance of the system.
Ultra-thin thickness, but spacious interior.
Standardized design, wide application.

Ultra-wide viewing angle
Full RGB color presents vivid pictures. 160° ultra-wide horizontal and vertical viewing angles can maximize the audience’s attention when watching at close range.

资源 9
High Brightness
资源 1
High Refresh Rate
资源 5
Hot Swap
资源 10
Fast Heat Dissipation
资源 11
IP5X
资源 8
Modular Design
资源 7
Angle Adjustable
资源 10
Lightweight
资源13
Convenient Maintenance
资源 11
Customized Solutions
P1.56
P1.95
P2.5
P2.604
P2.976
P3.91

Key Features

Specifications

Model NumberP1.5625P1.953P2.5P2.604P2.976P3.91
Physical Pitch1.5625mm1.953mm2.5mm2.604mm2.976mm3.91mm
Package ModeSMD1212SMD1515SMD1515/2020SMD1515SMD2020SMD2020
Physical Density409600 dots/㎡262144 dots/㎡160000 dots/㎡147456 dots/㎡112896 dots/㎡65536 dots/㎡
 Module Size250*250mm
 Pixel Resolution160*160 do ts128*128 dot s100*100 d ots96*96 dots84*84 dots64*64 dots
Module Thickness2mm
Weight0.3kg
Max Power32.5W
Scan Mode1/40S1/32S1/32S1/40S1/28S1/16S
Match Cabinet1000*250*33mm / 750*250*33mm / 500*250*33mm
Cabinet Weight6.2kg/5kg/4kg
Pixel per cabinet640*160 dots512*128 dots400*100 dots384*96 dots336*84 dots256*64 dots
Number of cabinet modules4pcs / 3pcs /2pcs
 Recommended Viewing Distance1.5-50m2-50m3-50m3-50m3-50m4-50m
Change frame frequency60Hz
Rate refresh≥3840Hz
Pixel Configuration1R1G1B
Brightness of white Balance≥700cd/㎡≥700cd/㎡≥900cd/㎡≥800cd/㎡≥900cd/㎡≥900cd/㎡
Number of power supplies in the cabinet1pcs
Power Supply5V/40A*1 pcs
Average Power Consumption265W/㎡
Max. Power onsumption800W/㎡
 Protection levelIP43
Protective MessuresThree Proofing Paint
Module working voltageDC 5V
Operating-20 ~ +50℃
Life Time>1000000h
The Broken Rate of Lamp Beads<0.0001
MBTF>5000h
Maintenance Connection ModeMaintenance from the Front / Front Service
Best Viewing AngleH:160° , V:160°H:160° , V:160°H:140° , V:140°H:140° , V:140°H:140° , V:140°
Cabinet Matching Module ModelP1.5625/P1.953/P2.5/P2.604/P2.976/P3.91
Input Voltage220V;AC±10%
Planeness≤ 0.5mm
Working Voltage220V;AC±10%
CPUPentium4 or above P4
Operation systemWIN98/2000/NT/XP/WIN7
Control Methodsynchronous control
Driving ICPWM
Model NumberP1.5625P1.953P2.5P2.604P2.976P3.91
Physical Pitch1.5625mm1.953mm2.5mm2.604mm2.976mm3.91mm
Package ModeSMD1212SMD1515SMD1515/2020SMD1515SMD2020SMD2020
Physical Density409600 dots/㎡262144 dots/㎡160000 dots/㎡147456 dots/㎡112896 dots/㎡65536 dots/㎡
 Module Size250*250mm
 Pixel Resolution160*160 do ts128*128 dot s100*100 d ots96*96 dots84*84 dots64*64 dots
Module Thickness2mm
Weight0.3kg
Max Power32.5W
Scan Mode1/40S1/32S1/32S1/40S1/28S1/16S
Match Cabinet1000*250*33mm / 750*250*33mm / 500*250*33mm
Cabinet Weight6.2kg/5kg/4kg
Pixel per cabinet640*160 dots512*128 dots400*100 dots384*96 dots336*84 dots256*64 dots
Number of cabinet modules4pcs / 3pcs /2pcs
 Recommended Viewing Distance1.5-50m2-50m3-50m3-50m3-50m4-50m
Change frame frequency60Hz
Rate refresh≥3840Hz
Pixel Configuration1R1G1B
Brightness of white Balance≥700cd/㎡≥700cd/㎡≥900cd/㎡≥800cd/㎡≥900cd/㎡≥900cd/㎡
Number of power supplies in the cabinet1pcs
Power Supply5V/40A*1 pcs
Average Power Consumption265W/㎡
Max. Power onsumption800W/㎡
 Protection levelIP43
Protective MessuresThree Proofing Paint
Module working voltageDC 5V
Operating-20 ~ +50℃
Life Time>1000000h
The Broken Rate of Lamp Beads<0.0001
MBTF>5000h
Maintenance Connection ModeMaintenance from the Front / Front Service
Best Viewing AngleH:160° , V:160°H:160° , V:160°H:140° , V:140°H:140° , V:140°H:140° , V:140°
Cabinet Matching Module ModelP1.5625/P1.953/P2.5/P2.604/P2.976/P3.91
Input Voltage220V;AC±10%
Planeness≤ 0.5mm
Working Voltage220V;AC±10%
CPUPentium4 or above P4
Operation systemWIN98/2000/NT/XP/WIN7
Control Methodsynchronous control
Driving ICPWM
